Component Location

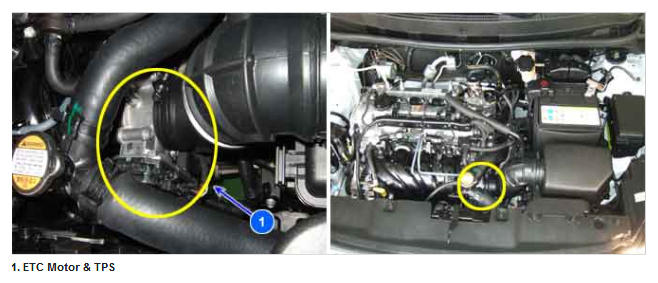

Fig 1: ETC Motor & TPS Component Location
G10366148Courtesy of HYUNDAI MOTOR AMERICA
