Signal Waveform & Data

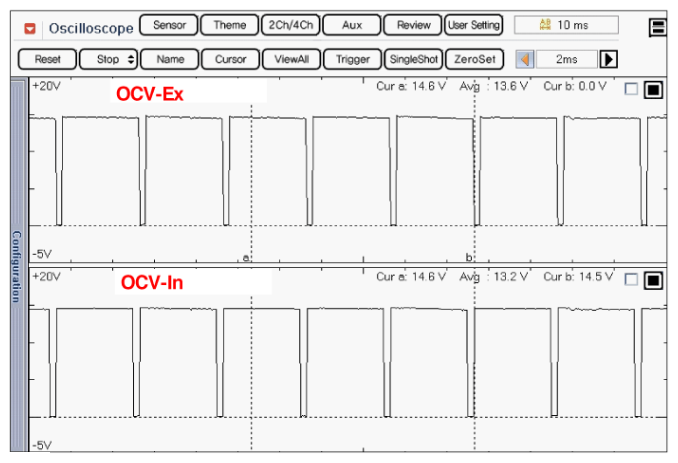

Fig 1: Screen Display - Normal Waveform Of OCV At Idle
G10366087Courtesy of HYUNDAI MOTOR AMERICA

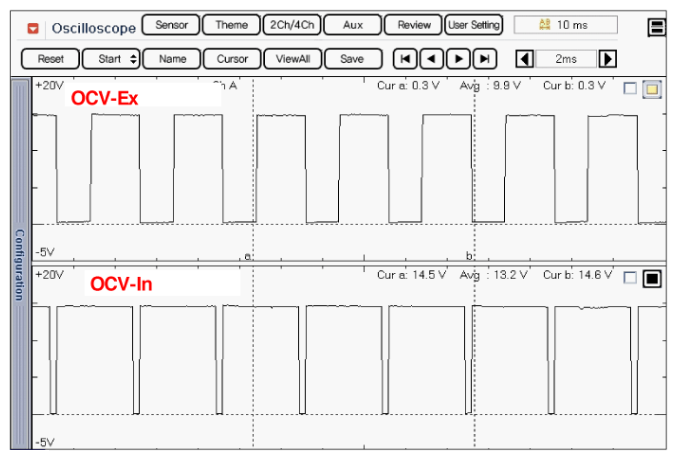

Fig 2: Screen Display - Normal Waveform Of OCV At Acceleration
G10366088Courtesy of HYUNDAI MOTOR AMERICA
