Circuit Diagram: (A/T)

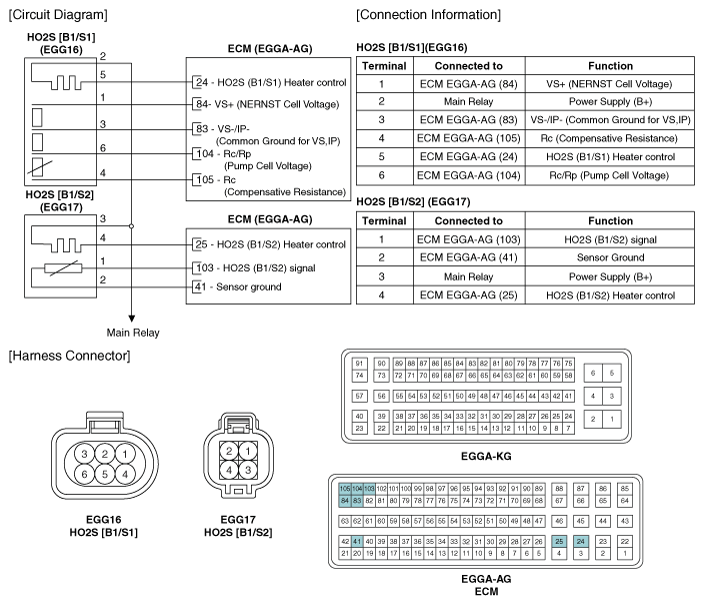

Fig 1: Heated Oxygen Sensor Schematic Diagrams And Connector Terminal Identification

G10362443

Courtesy of HYUNDAI MOTOR AMERICA
