Home >> Hyundai >> 2015 >> Accent GLS, Automatic Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Emergency Signal System >> Description And Operation >> Description >> System configuration

System configuration

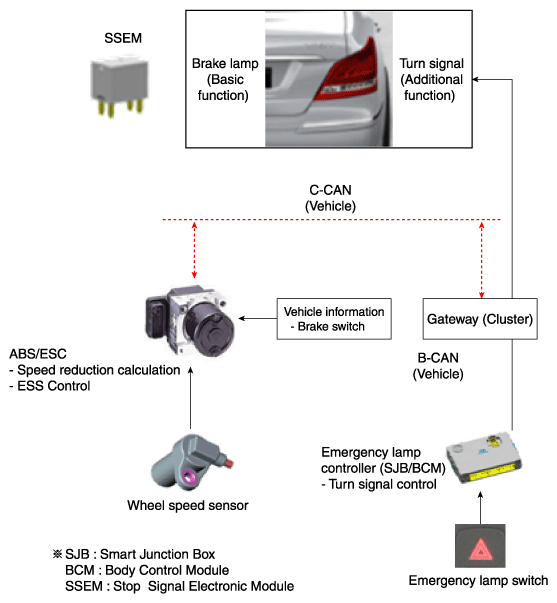

Fig 1: ABS/ESC Communication Diagram (1 Of 2)

G10361769

Courtesy of HYUNDAI MOTOR AMERICA

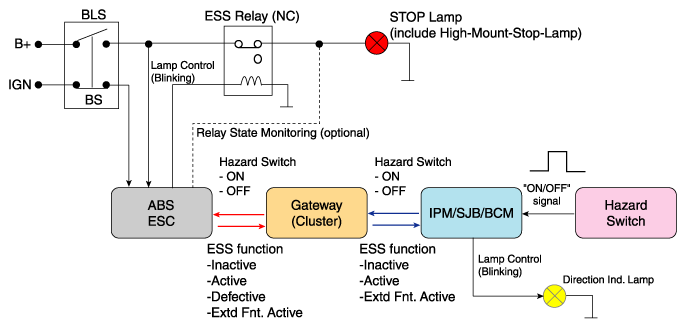

Fig 2: ABS/ESC Communication Diagram (2 Of 2)

G10361770

Courtesy of HYUNDAI MOTOR AMERICA
