Signal Waveform & Data

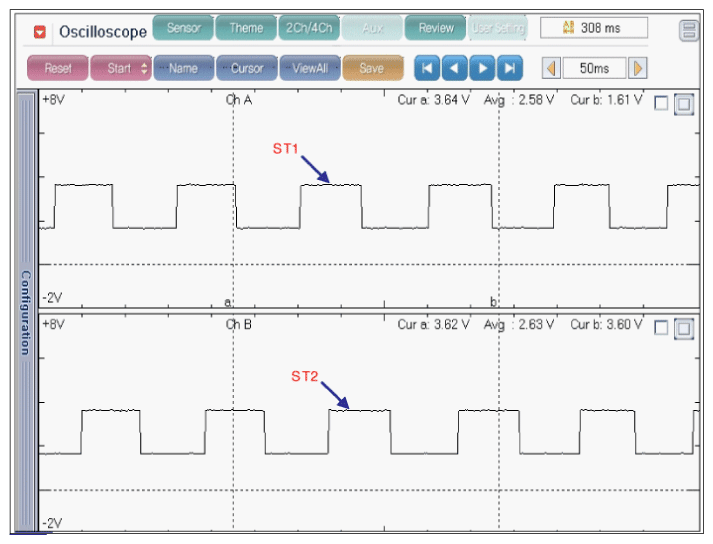

Fig 1: Screen Display - Normal Waveform Of Steering Angle Sensor (Left)

Courtesy of HYUNDAI MOTOR AMERICA

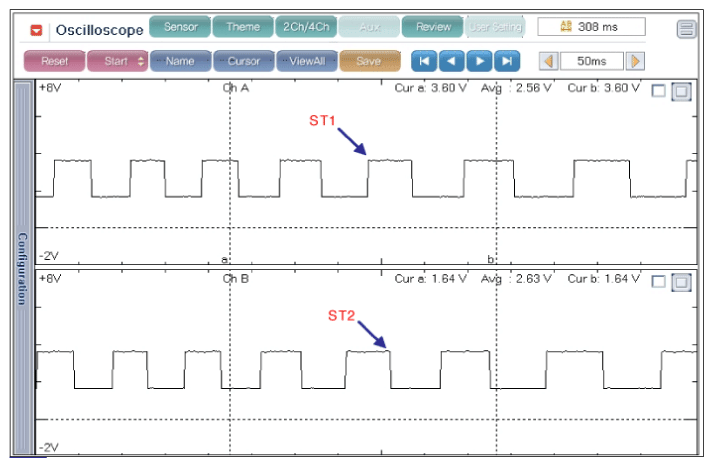

Fig 2: Screen Display - Normal Waveform Of Steering Angle Sensor (Right)

Courtesy of HYUNDAI MOTOR AMERICA

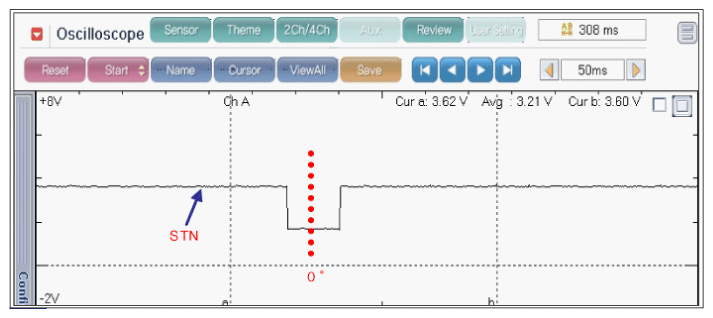

Fig 3: Screen Display - Normal Waveform Of Steering Angle Sensor Being Center Position

Courtesy of HYUNDAI MOTOR AMERICA

*"LOW": approx 1.5V, "HIGH": approx 3.5V.
