Home >> Hyundai >> 2015 >> Accent GLS, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Body Control Module (BCM) >> Body Control Module (BCM) >> Schematic Diagrams >> Circuit Diagram

Circuit Diagram

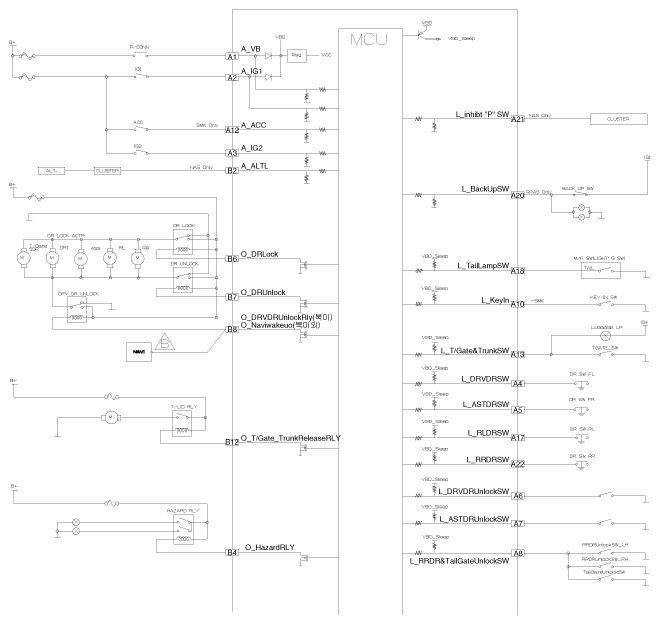

Fig 1: Body Control Module Circuit Diagram (1 Of 2)

G10363551

Courtesy of HYUNDAI MOTOR AMERICA

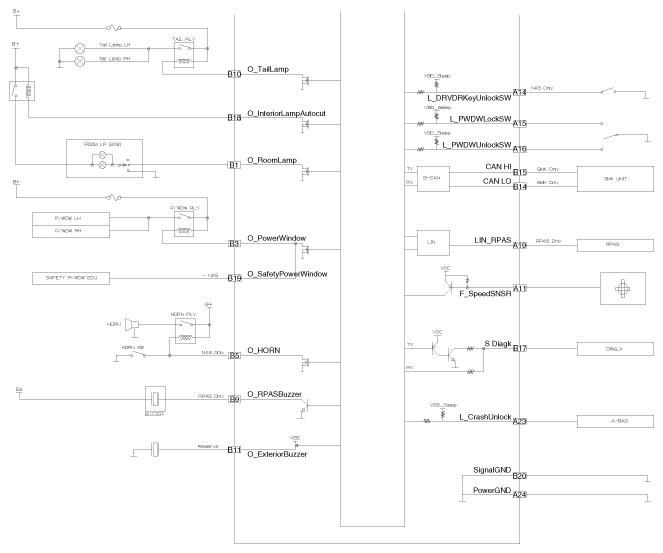

Fig 2: Body Control Module Circuit Diagram (2 Of 2)

G10363552

Courtesy of HYUNDAI MOTOR AMERICA
