Circuit Diagram: (A/T)

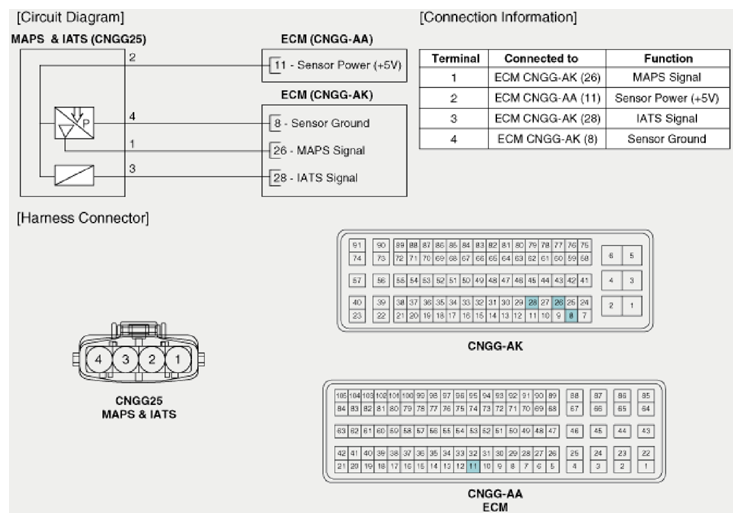

Fig 1: MAPS And Intake Air Temperature Sensor - Circuit Diagram (A/T)

G09151060

Courtesy of HYUNDAI MOTOR AMERICA
