Repair Procedures: Removal

CAUTION:
  • Removal of the airbag must be performed according to the precautions/procedures described previously.
  • Before disconnecting the front impact sensor connector, disconnect the front airbag connector(s).
  • Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front wheel guard.
  3. Remove the washer reservoir.

    (Refer to FRONT WASHER MOTOR .

    [Right side only]

  4. Remove the front impact sensor mounting bolt (B).

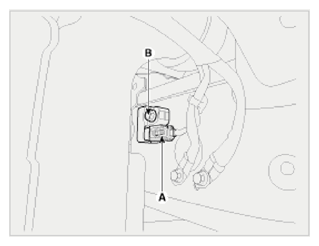

    Fig 1: Identifying Front Impact Sensor Mounting Bolts
    G09133750Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the front impact sensor connector (A).
  6. Remove the front impact sensor.
