[Sensor Status]

WARNING: This page is about a different car, the 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

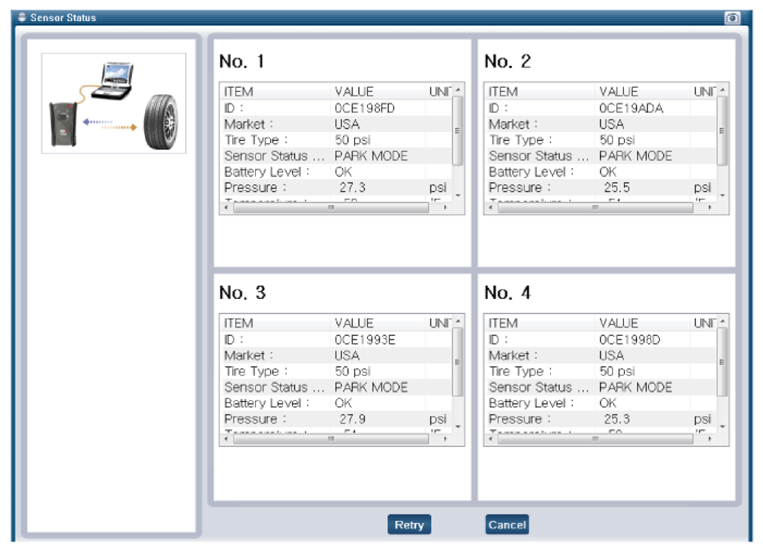

Fig 1: Display - Sensor Status Screen
G09137686Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • Each entry must check whether each sensor normal.
  • After replacing the tires or sensors, check the status of sensor is working properly after sensor registration process.
