Vertual Ground Output Circuit Inspection

  1. IG KEY "OFF".
  2. Disconnect HO2S (S1) connector.
  3. IG KEY "ON" & ENG "OFF".
  4. Measure the voltage between Vertual Ground Output terminal of HO2S (S1) harness connector and chassis ground.

    Specification:  Approx 2.5V

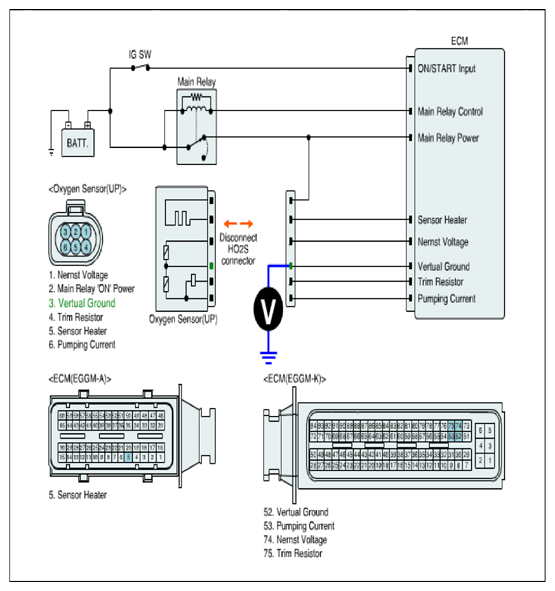

    Fig 1: Measuring Voltage Between Vertual Ground Output Terminal Of HO2S (S1) Harness Connector And Chassis Ground
    G08814066Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the measured voltage within specification?

    YES

    Go to "COMPONENT INSPECTION " procedure.

    NO

    Repair Open or Short circuit and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
