Engine Control System Diagnosis (1 Of 2) - Non-Turbo
>>
DTC P0192: Fuel Rail Pressure Sensor Circuit Low Input
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

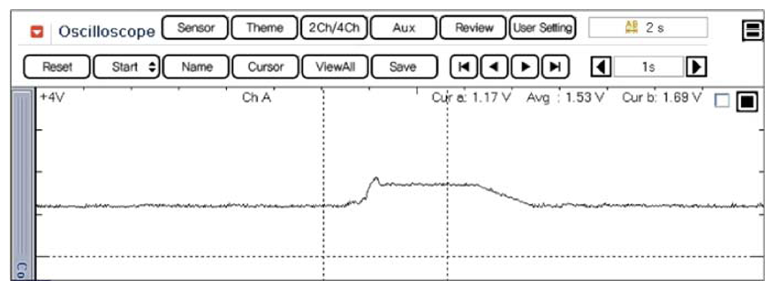

Fig 1: Display - Normal Waveform Of FPS At Acceleration
Courtesy of HYUNDAI MOTOR AMERICA
