Signal Waveform & Data

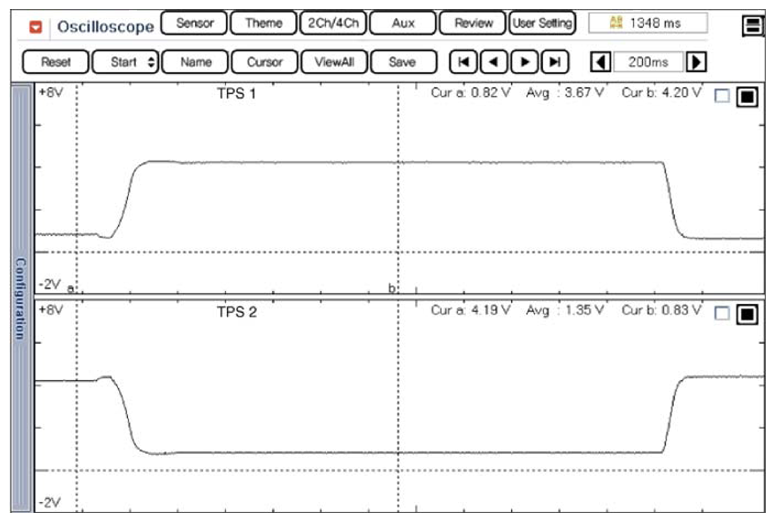

Fig 1: Display - TPS1 & TPS2 Normal Waveform (With No Accel Pedal Depressed Under IG ON Condition)

G08813532

Courtesy of HYUNDAI MOTOR AMERICA
