Monitor Scantool Data

WARNING: This page is about a different car, the 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Check parking position switch status
1. Connect scantool with diagnostic connector.
2. Check current data with scantool.
3. Check "Shift lever P position" parameter on current data.
4. Check that data is appropriately changeable according to the shift lever position in P or others.
  Specification:

  P position: ON

  Not in P position: OFF

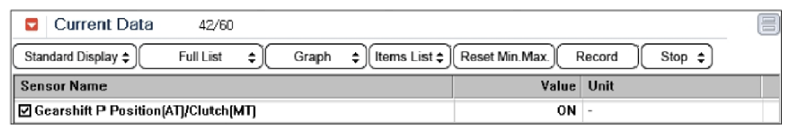

  Fig 1: Display - Shift Lever P Position Current Data
  Courtesy of HYUNDAI MOTOR AMERICA
5. Is the shift lever P position normal?
  YES
  - Check poor connection between harness connector and Parking Postion switch or SMK Unit:
    Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector. Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Go to "Inspection & Repair" procedure.
