Circuit Diagram

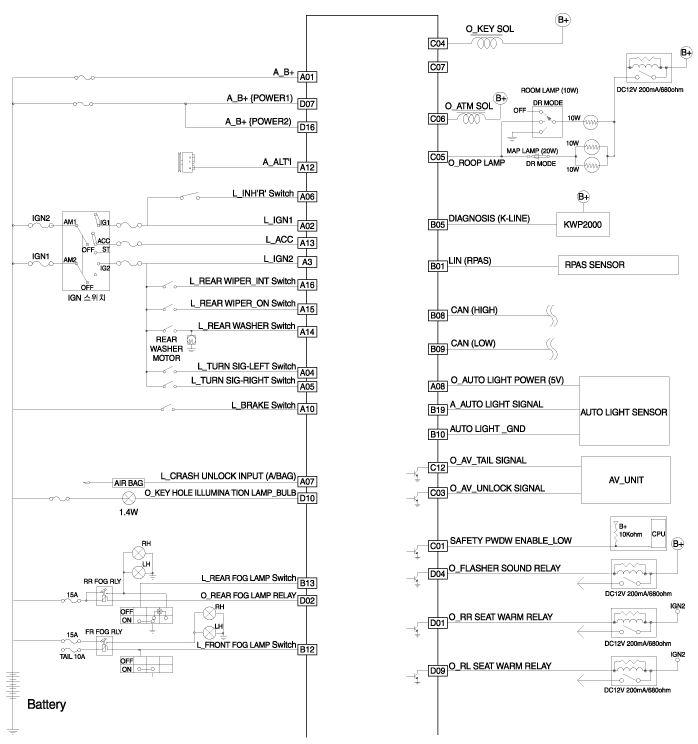

Fig 1: BCM Circuit Diagram (1 Of 2)

G00546878

Courtesy of HYUNDAI MOTOR CO.

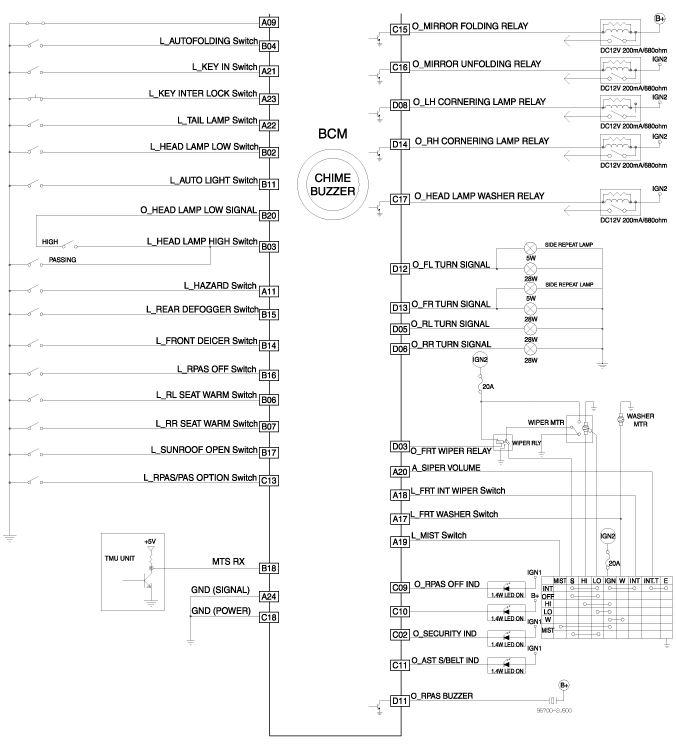

Fig 2: BCM Circuit Diagram (2 Of 2)

G00546879

Courtesy of HYUNDAI MOTOR CO.
