Components Location

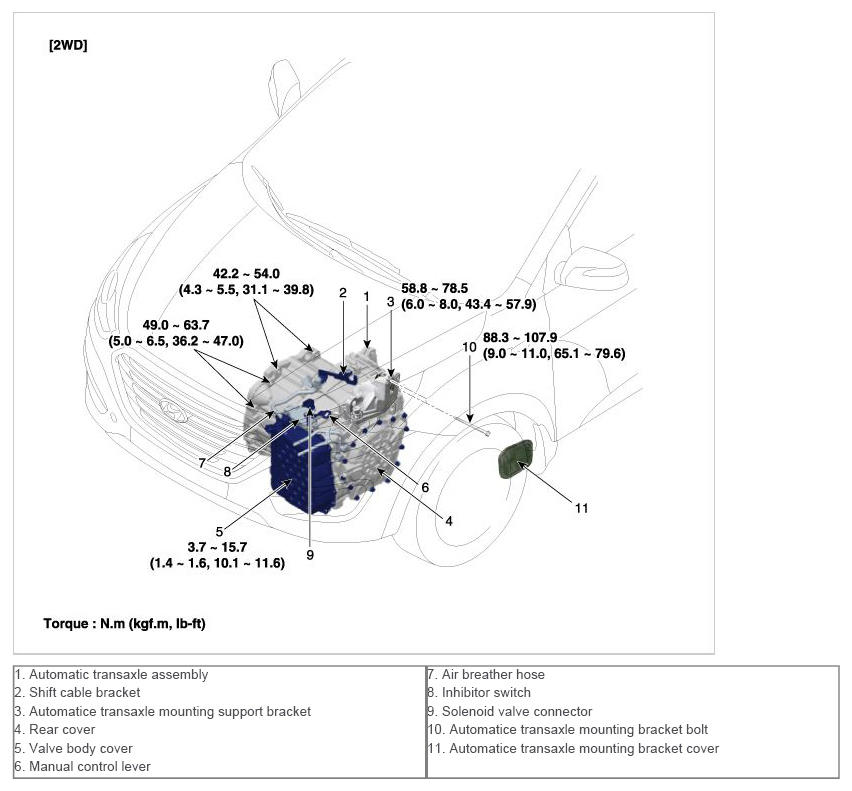

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications - 2.0L (2WD)
G09798794Courtesy of HYUNDAI MOTOR AMERICA

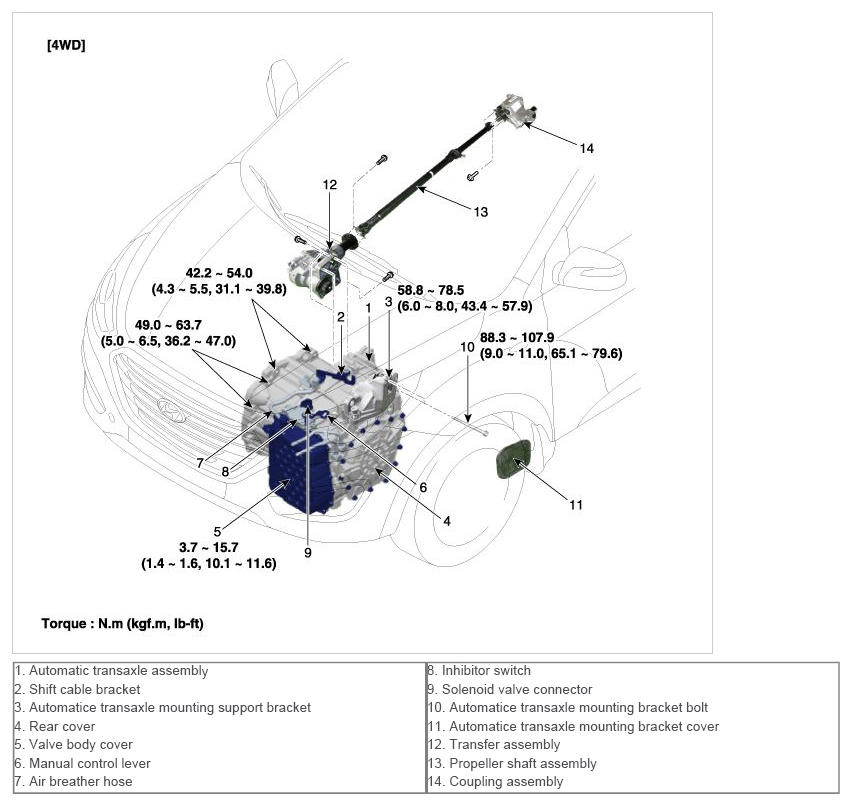

Fig 2: Automatic Transaxle Replacement Components With Torque Specifications - 2.0L (AWD)
G09798795Courtesy of HYUNDAI MOTOR AMERICA
