Circuit Diagram: (A/T)

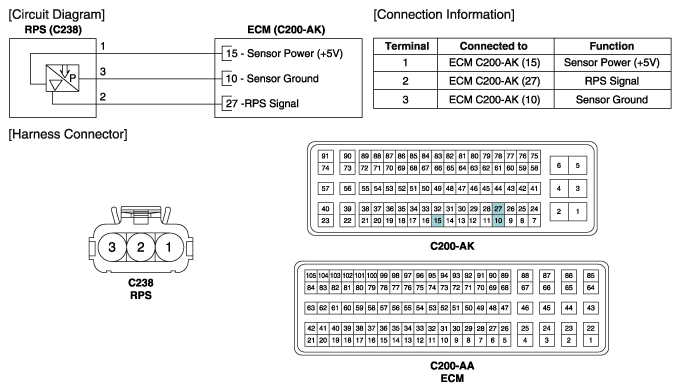

Fig 1: Rail Pressure Sensor Circuit Diagram (A/T)

G09798629

Courtesy of HYUNDAI MOTOR AMERICA
