Circuit Diagram: (M/T)

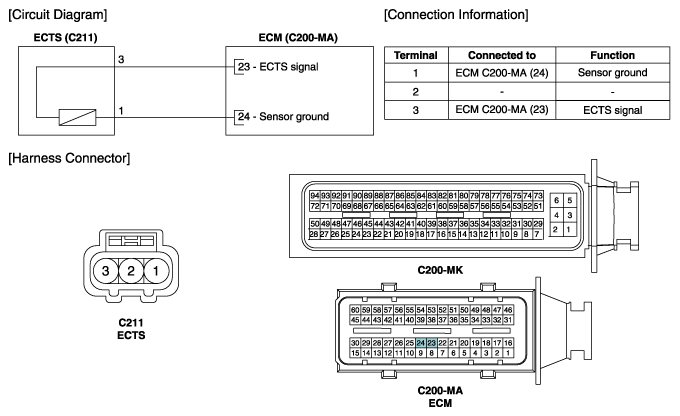

Fig 1: Engine Coolant Temperature Sensor Circuit Diagram (M/T)

G09798596

Courtesy of HYUNDAI MOTOR AMERICA
