NVLD (Natural Vacuum Leakage Detection): Troubleshooting: Waveform

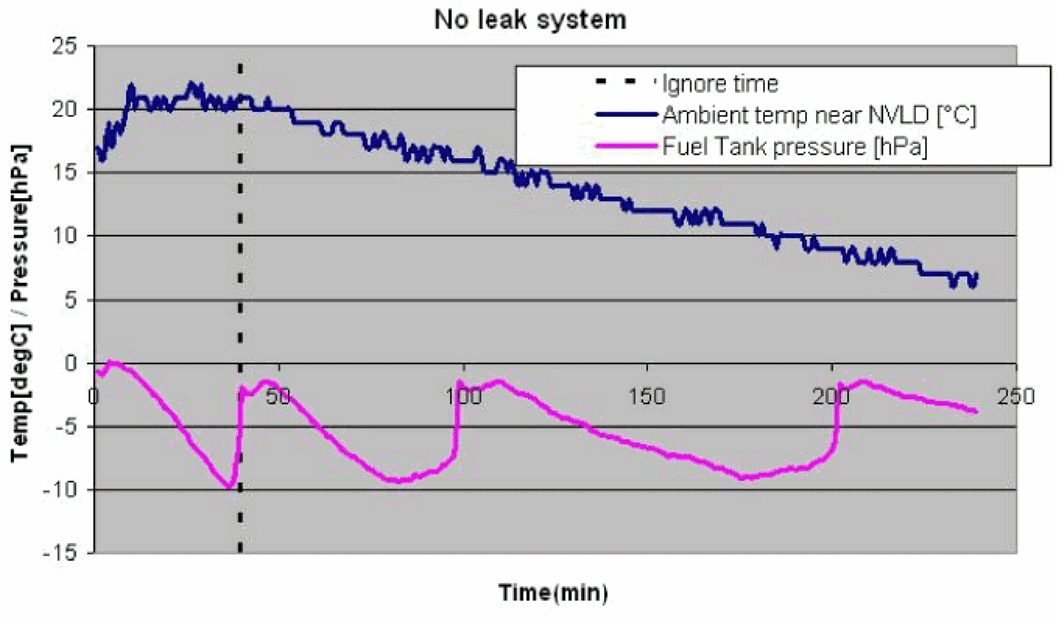

Fig 1: NVLD (Natural Vacuum Leakage Detection) Signal Waveform - No Leak
G00538715Courtesy of HYUNDAI MOTOR CO.

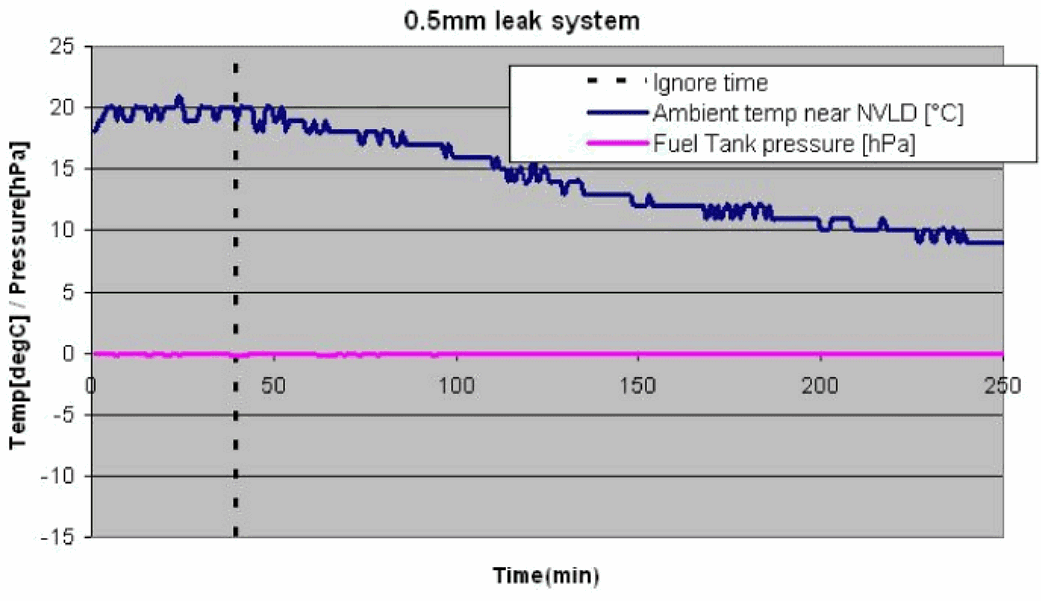

Fig 2: NVLD (Natural Vacuum Leakage Detection) Signal Waveform - 0.5mm Leak
G00538716Courtesy of HYUNDAI MOTOR CO.
