Schematic Diagrams

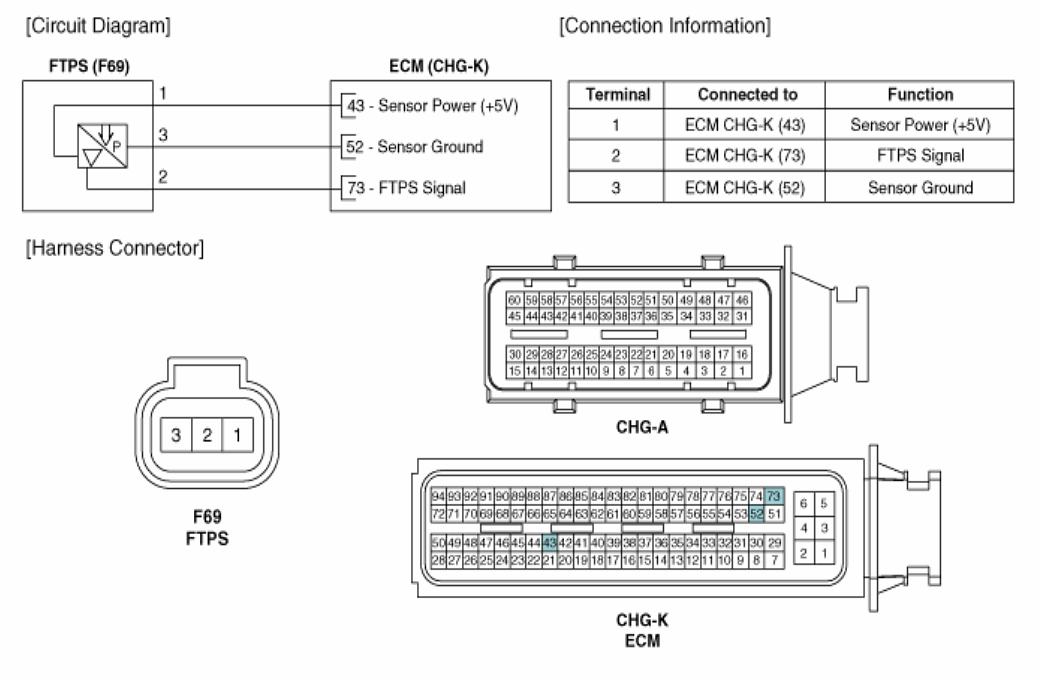

Fig 1: Fuel Tank Pressure Sensor Circuit Diagram

G00546588

Courtesy of HYUNDAI MOTOR CO.
