Signal Waveform & Data

Fig 1: Display - Normal Data Of Misfire Counter At Idle
G09273209Courtesy of HYUNDAI MOTOR AMERICA

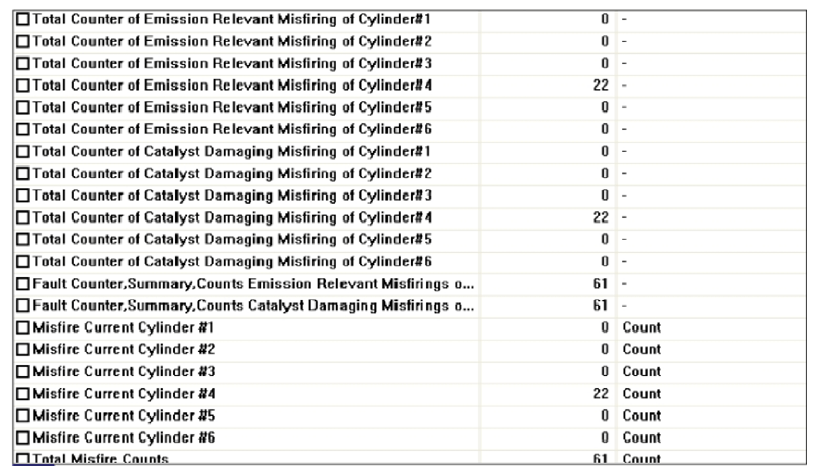

Fig 2: Display - Abnormal Data Of Misfire Counter When Cylinder 4 Injector Opens
G09273210Courtesy of HYUNDAI MOTOR AMERICA
