Engine Control System Diagnosis - 2.4L (1 Of 3)
>>
DTC P0192: Fuel Rail Pressure Sensor Circuit Low Input
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

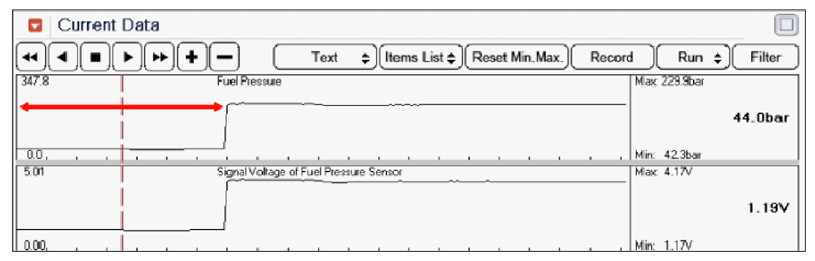

Fig 1: Display - Fuel Pressure Signal Waveform And Data Screen
Courtesy of HYUNDAI MOTOR AMERICA
Normal idle state.

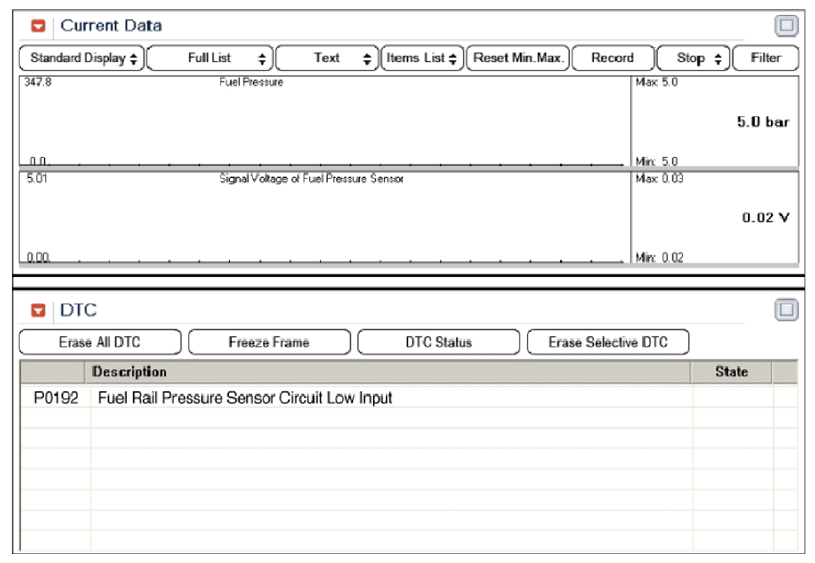

Fig 2: Display - DTC Screen
Courtesy of HYUNDAI MOTOR AMERICA
Sample: P0192 setting when the Signal Circuit of Fuel Pressure Sensor shorts to ground.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
