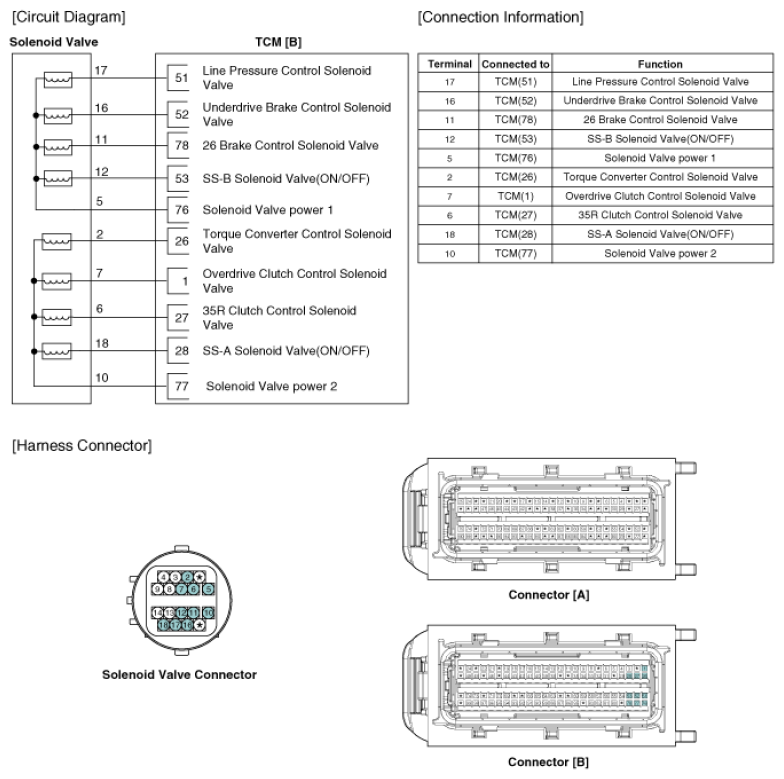

Home >> Hyundai >> 2014 >> Santa Fe GLS, AWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Torque Converter Control Solenoid Valve (T/CON_VFS) >> Schematic Diagrams >> Circuit Diagram
