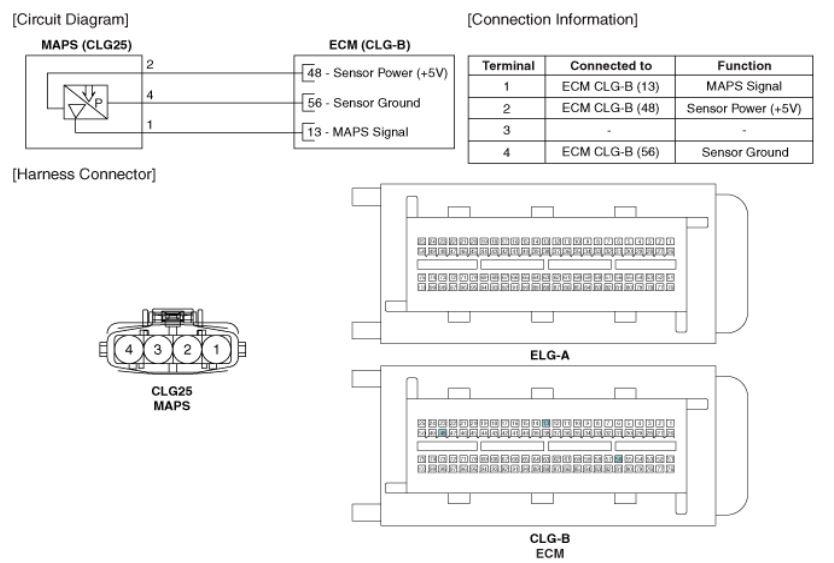

Home >> Hyundai >> 2014 >> Genesis Coupe 3.8 R-Spec, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> Manifold Absolute Pressure Sensor (MAPS) >> Schematic Diagrams >> Circuit Diagram
