Signal Waveform & Data

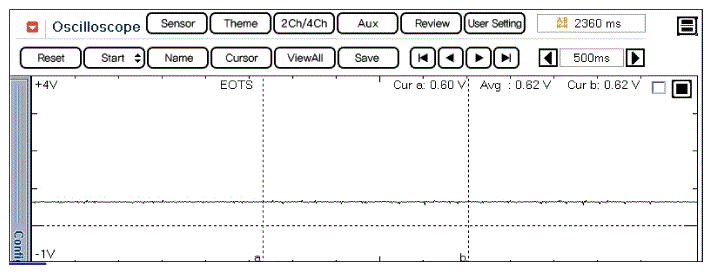

Fig 1: Display - Normal Waveform Of EOTS At 76°C (168.4°F)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Display - Normal Data Of IATS, ECTS And EOTS At IG ON

Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Display - Normal Data Of IATS, ECTS And EOTS Engine At Operating Temperature

Courtesy of HYUNDAI MOTOR AMERICA

Normal waveform of EOTS at 76°C (168.4°F), refer to Fig 1.

Normal data of IATS & ECTS & EOTS at IG "ON", refer to Fig 2.

Normal data of IATS & ECTS & EOTS engine at operating temperature. Refer to Fig 3.
