Components Location

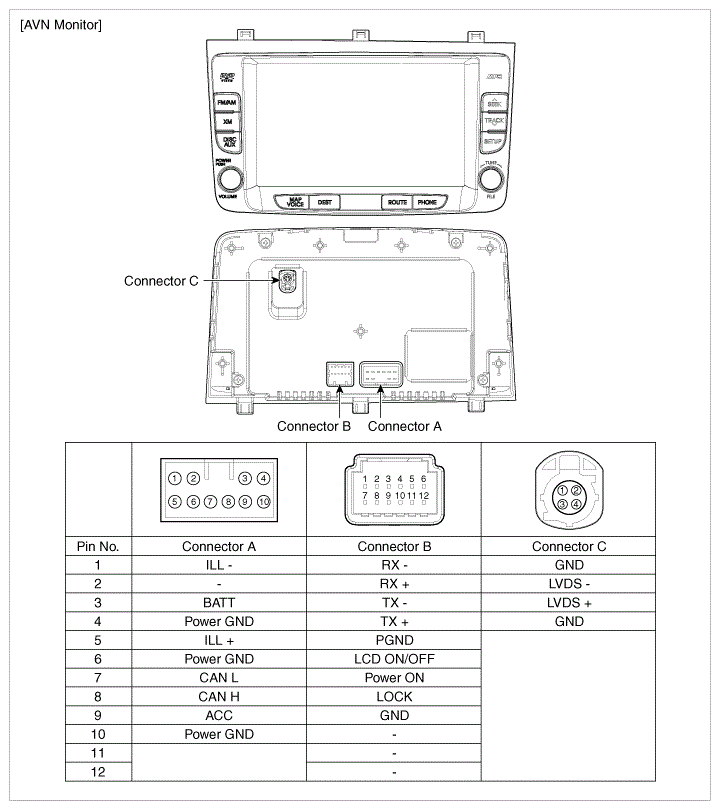

Fig 1: Identifying Front LCD Monitor And Connector

G08853310

Courtesy of HYUNDAI MOTOR AMERICA
