Home >> Hyundai >> 2014 >> Genesis 3.8 >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Video/Navigation System >> Components and Components Location >> Components

Components and Components Location: Components

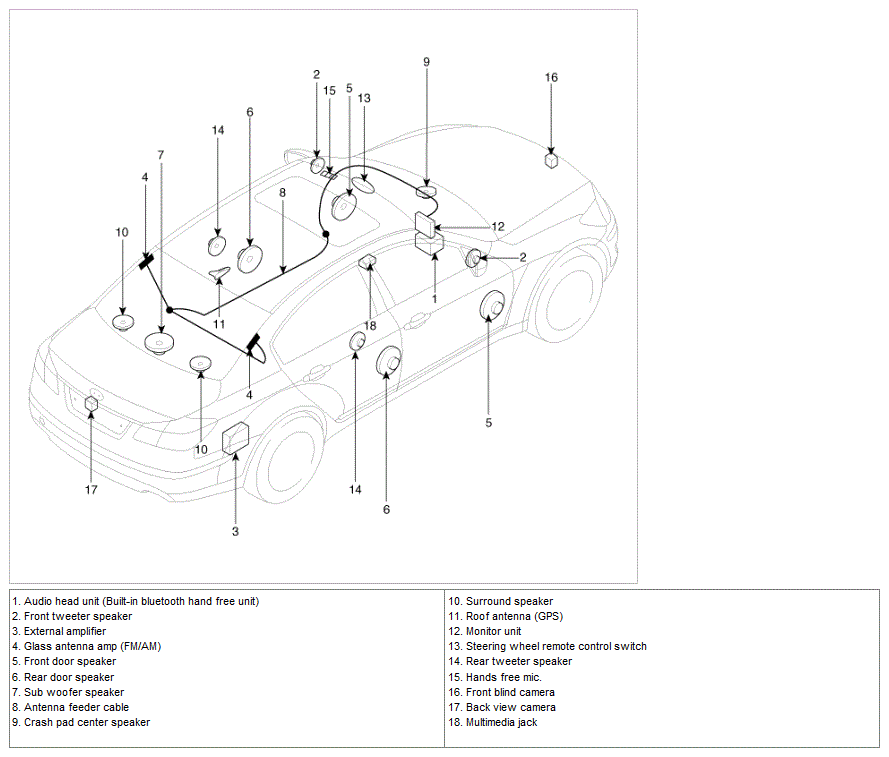

Fig 1: A/V & Navigation Components Location

G08853297

Courtesy of HYUNDAI MOTOR AMERICA
