Signal Waveform & Data

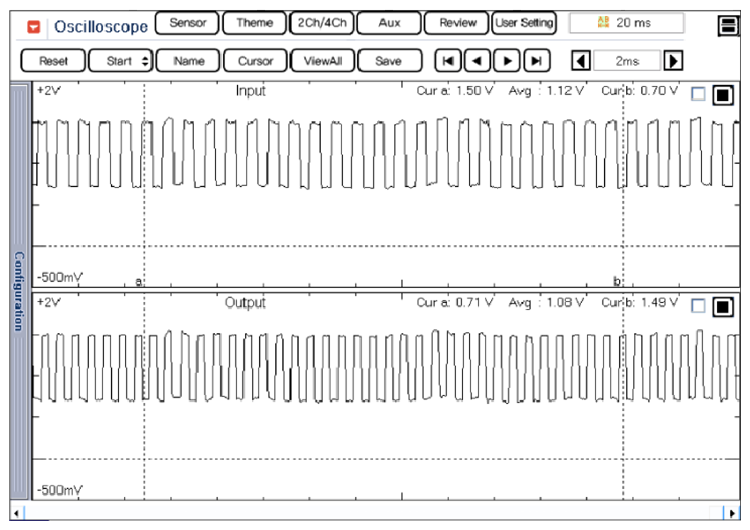

Fig 2: Display - Input/Output Speed Sensor (D Range 4th)
G09793779Courtesy of HYUNDAI MOTOR AMERICA
