Component Location

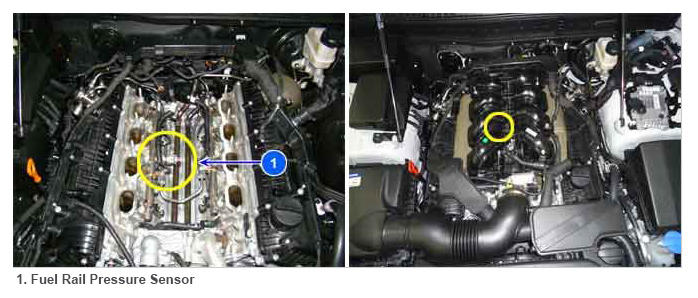

Fig 1: Identifying Fuel Rail Pressure Sensor
G09792872Courtesy of HYUNDAI MOTOR AMERICA
