Circuit Diagram

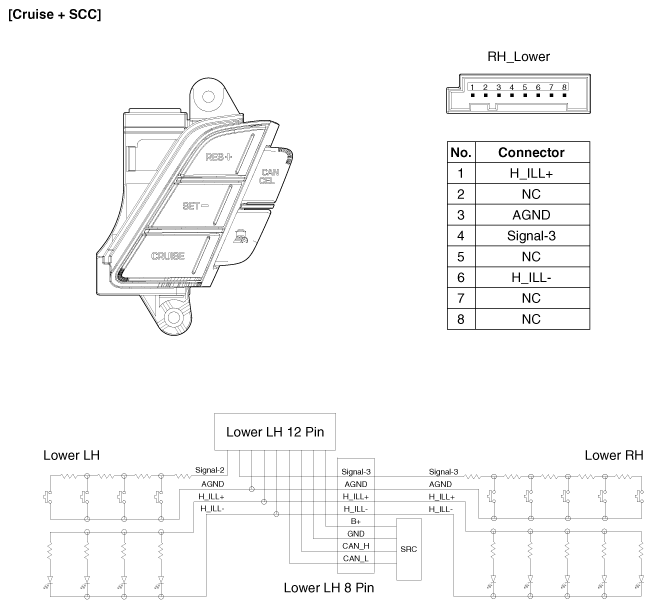

Fig 1: Smart Cruise Control Switch - Circuit Diagram

G09789270

Courtesy of HYUNDAI MOTOR AMERICA
