Signal Waveform & Data

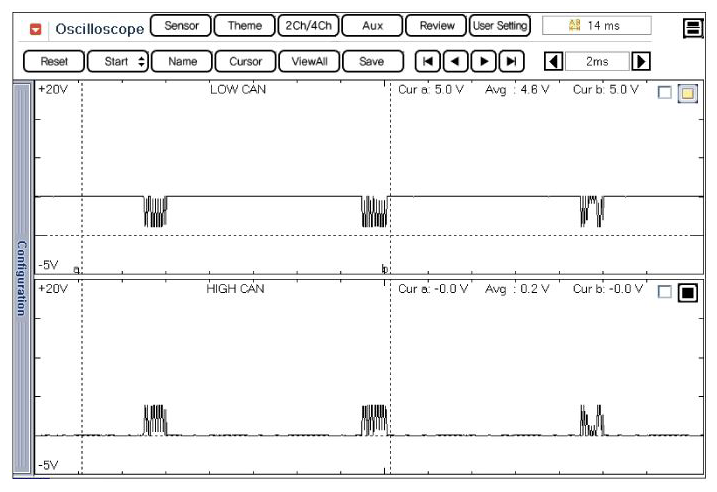

Fig 1: Display - Normal Waveform Of Body CAN High And Low

G09792578

Courtesy of HYUNDAI MOTOR AMERICA

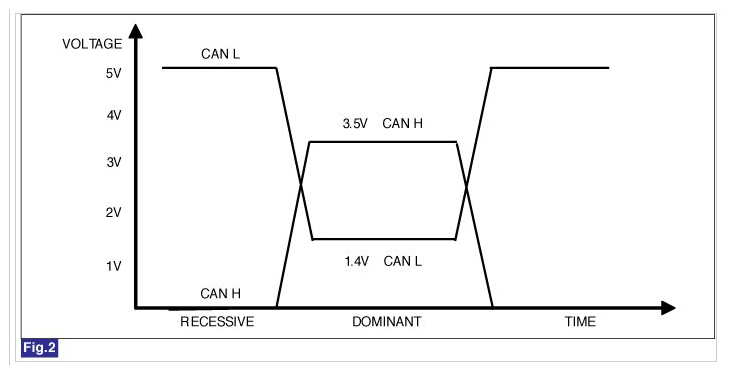

Fig 2: Display - Normal Voltage Level Of Body CAN

G09792579

Courtesy of HYUNDAI MOTOR AMERICA
