Home >> Hyundai >> 2014 >> Equus Signature >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Power Trunk Module Diagnosis >> DTC B1602: CAN Error >> Specification >> Signal Waveform & Data

Signal Waveform & Data

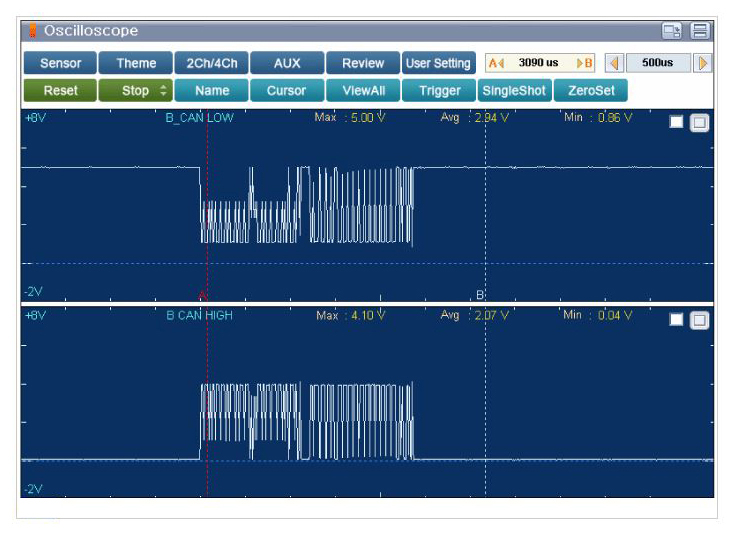

Fig 1: Display - B CAN Low & High Signal Waveform

G09792344

Courtesy of HYUNDAI MOTOR AMERICA
