Monitor GDS Data

Variant Coding
1. Connect GDS to Data Link Connector (DLC).
2. IG "ON".
3. Perform variant coding in "Vehicle S/W Management" menu of the GDS. (Fig 1, Fig 2, Fig 3)
4. IG "OFF" and wait for about 10 seconds, and then IG "ON". Go to "COMPONENT INSPECTION " Procedure.
  NOTE: In case that the state of HAC is enabled, perform "longitudinal G sensor Calibration" by GDS. (refer to C1285 )

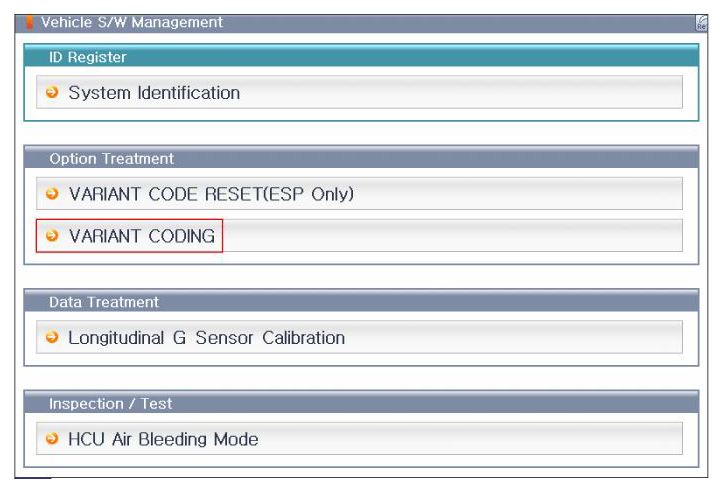

  Fig 1: Display - Variant Coding Vehicle Software Management Screen
  Courtesy of HYUNDAI MOTOR AMERICA

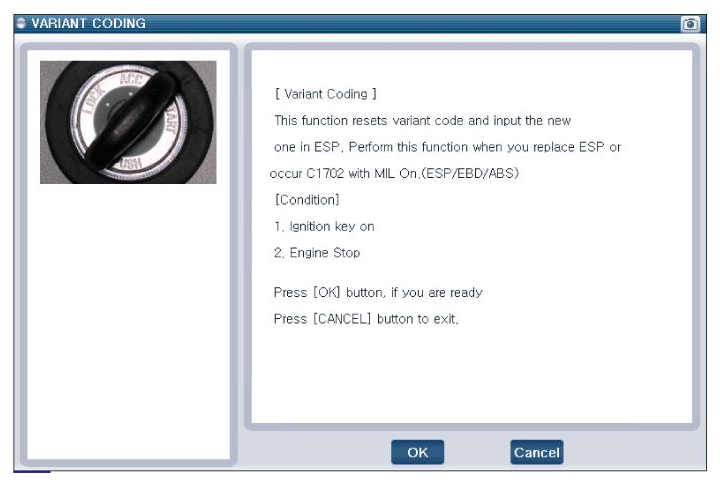

  Fig 2: Display - Variant Coding Confirmation Screen
  Courtesy of HYUNDAI MOTOR AMERICA

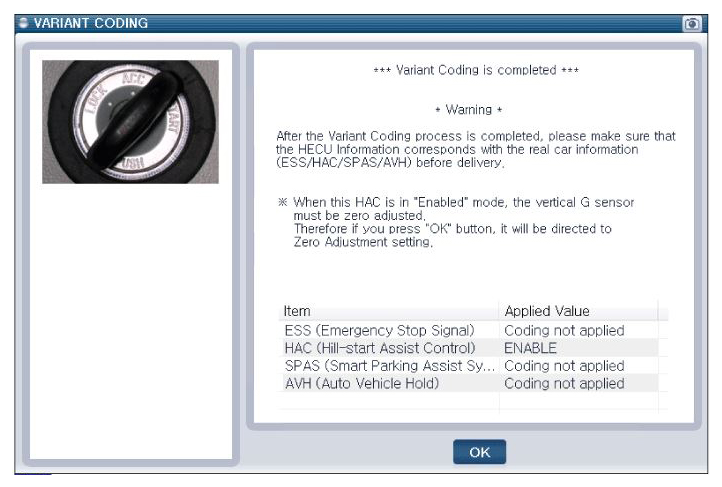

  Fig 3: Display - Variant Coding Completion Screen
  Courtesy of HYUNDAI MOTOR AMERICA
