Components And Components Location

WARNING: This page is about a different variant/trim than selected.

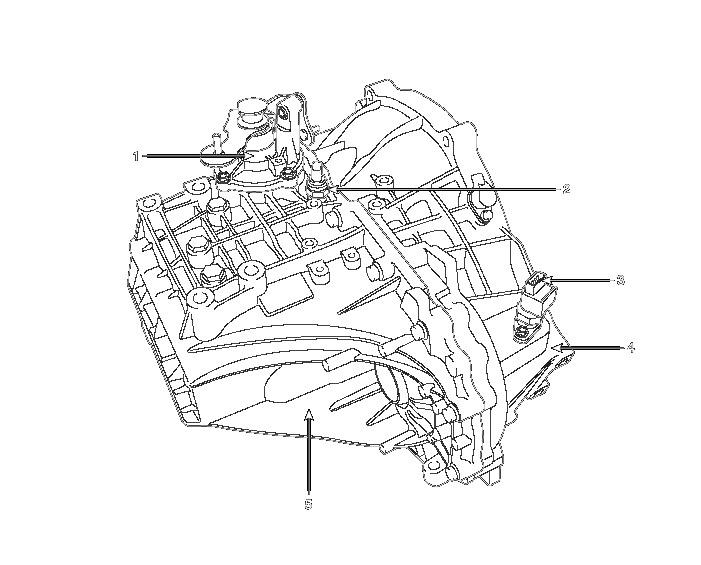

Fig 1: Identifying Transaxle Components
G00558239Courtesy of HYUNDAI MOTOR AMERICA
1. Control shaft complete 4. Transaxle housing
2. Back-up lamp switch 5. Transaxle case
3. Vehicle speed sensor -
