Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Stop the engine and uplift the vehicle with lift.
  2. Remove the under cover (A).
    3. Fig 1: Identifying Engine Under Cover
    G00558238Courtesy of HYUNDAI MOTOR AMERICA

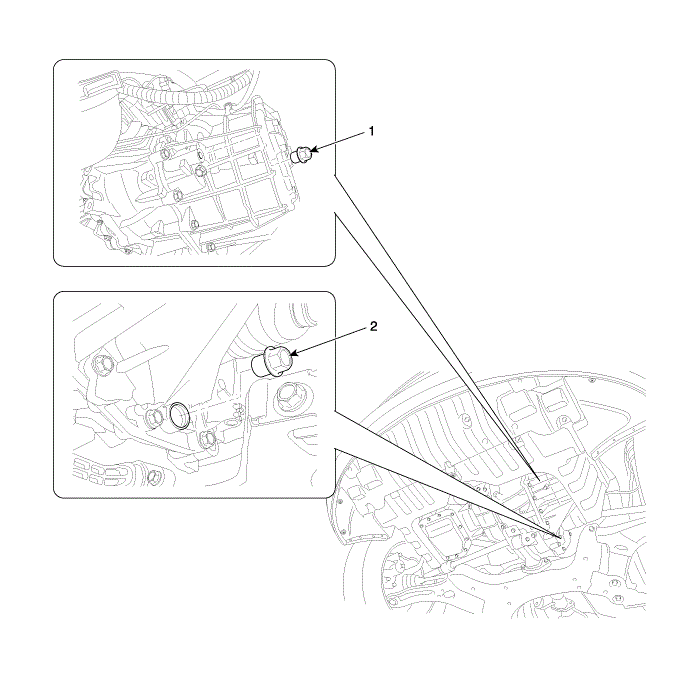

  3. Drain the manual transaxle oil after loosening the drain plug (A). See Figure.
  4. Install the drain plug with new gasket.

    Tightening Torque:

    58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.8 lb-ft)

  5. Add new oil through the filler plug hole and, fill it just below the plug opening.

    Standard oil:  SAE 75W/85, API GL-4

    Oil capacity:  1.9 ~ 2.0 L (0.50 ~ 0.53 U.S.gal., 2.01 ~ 2.11 U.S. qt., 1.67 ~ 1.76 lmp qt.)
