Circuit Diagram

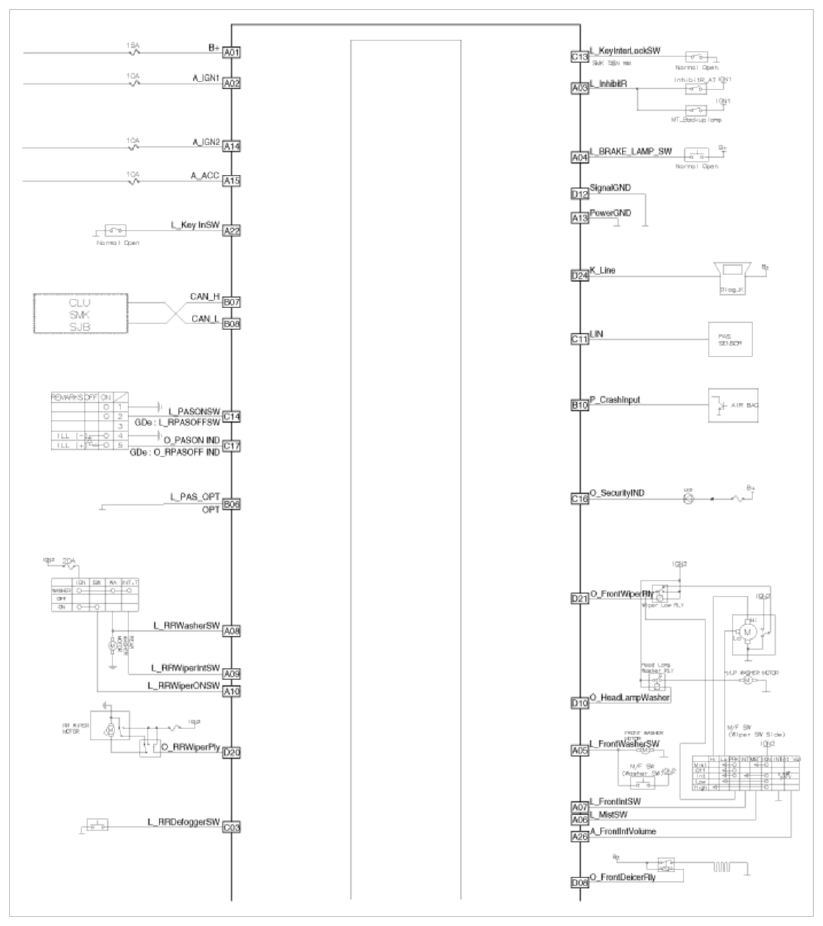

Fig 1: Parking Assist System Schematic Diagrams (1 Of 3)
G09887440Courtesy of HYUNDAI MOTOR AMERICA

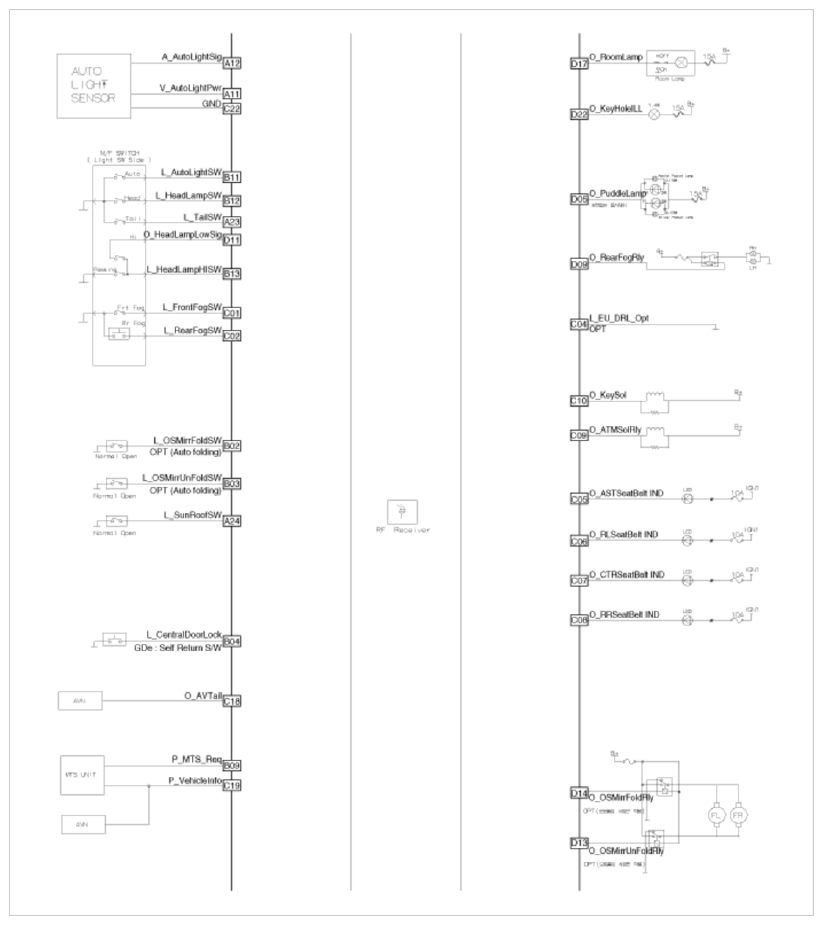

Fig 2: Parking Assist System Schematic Diagrams (2 Of 3)
G09887441Courtesy of HYUNDAI MOTOR AMERICA

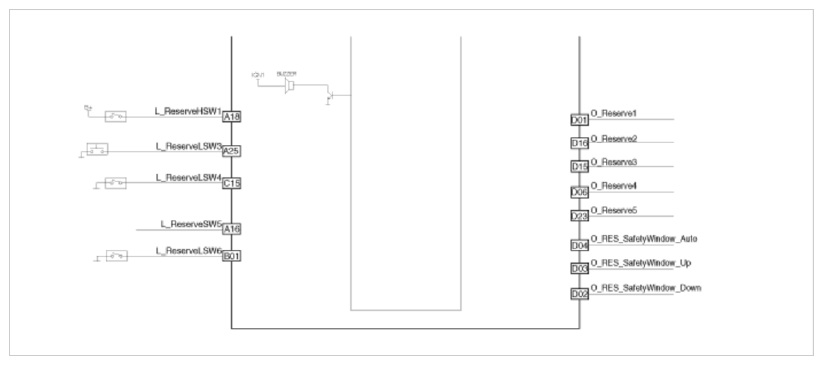

Fig 3: Parking Assist System Schematic Diagrams (3 Of 3)
G09887442Courtesy of HYUNDAI MOTOR AMERICA
