Circuit Diagram

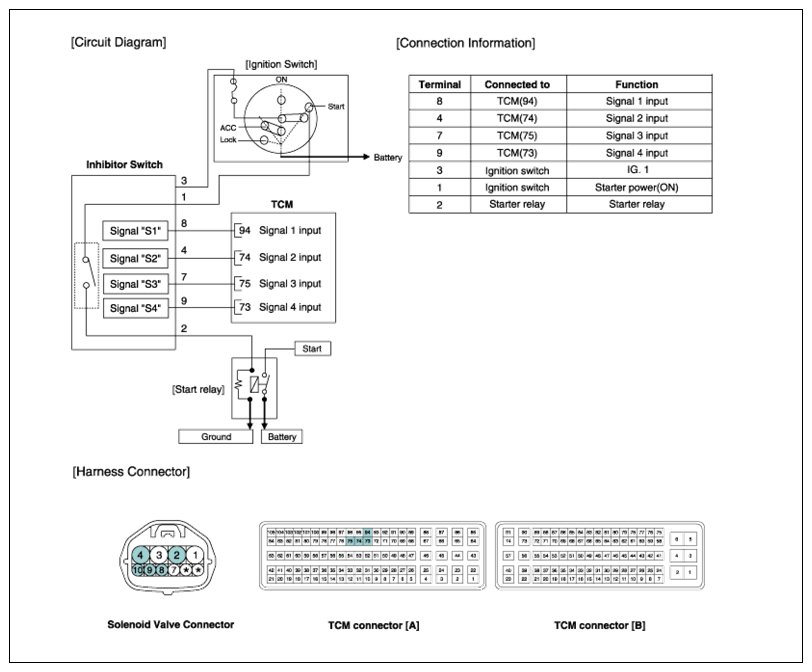

Fig 1: Inhibitor Switch Circuit Diagram And Connector Terminal Identification

G10256001

Courtesy of HYUNDAI MOTOR AMERICA
