Monitor Scantool Data

PODS Reset
1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select Passenger Occupant Detecting System and select "PODS Reset" mode.
3. And then press "ENTER"

  Fig 1: Display - PODS Reset (1 of 4)
  Courtesy of HYUNDAI MOTOR AMERICA

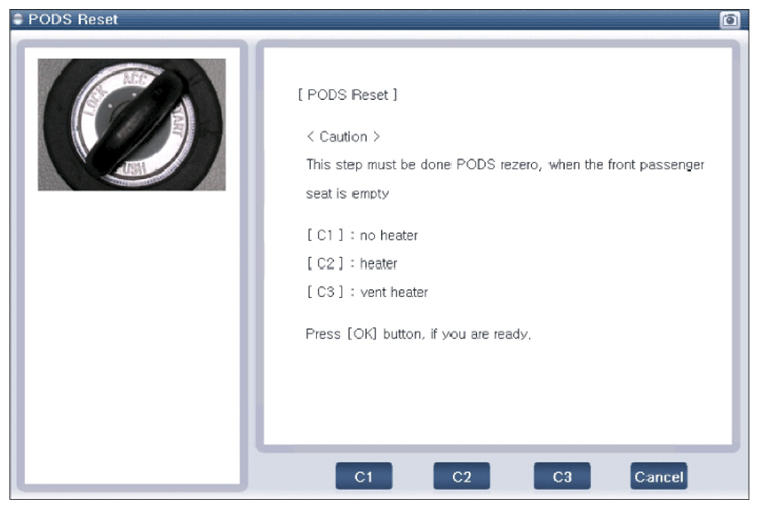

  Fig 2: Display - PODS Reset (2 of 4)
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 3: Display - PODS Reset (3 of 4)
  Courtesy of HYUNDAI MOTOR AMERICA

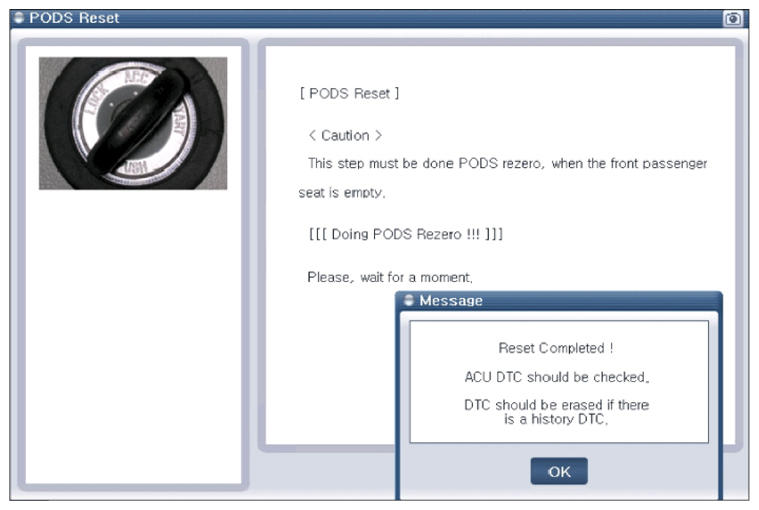

  Fig 4: Display - PODS Reset (4 of 4)
  Courtesy of HYUNDAI MOTOR AMERICA

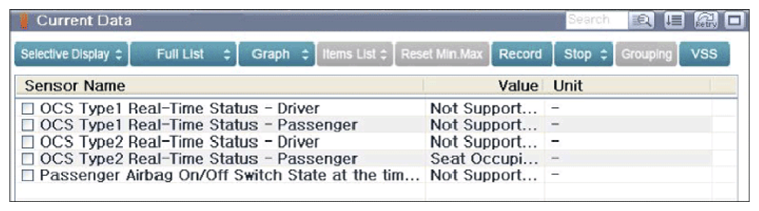

  Fig 5: Display - PODS Real Time Status Of Current Data
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is DTC present problem?
  YES
  - Go to "W/HARNESS INSPECTION " procedure.
  NO
  - Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or Passenger side PODS-F sensor Mat & ECU connector or was repaired and Passenger side PODS-F sensor Mat & ECU memory was not cleared.
    Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
  - Repair or replace as necessary, then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
