Front Side Impact Sensor

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the door scuff trim.

    (Refer to "DOOR SCUFF TRIM ")

  3. Remove the center pillar trim.

    (Refer to "CENTER PILLAR TRIM ")

  4. Disconnect the side impact sensor connector (B).

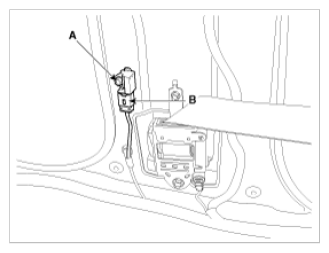

    Fig 1: Identifying Side Impact Sensor Connector And Mounting Bolt
    G08810283Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the side impact sensor mounting bolt (A) and remove the side impact sensor.
