Repair Procedures: Removal

CAUTION:
  • Removal of the airbag must be performed according to the precautions/procedures described previously.
  • Before disconnecting the front impact sensor connector, disconnect the front airbag connector(s).
  • Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the air duct (A).

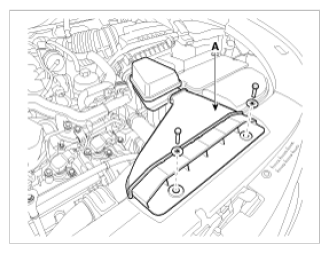

    Fig 1: Identifying Air Duct
    G08810279Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the radiator support upper member (A).

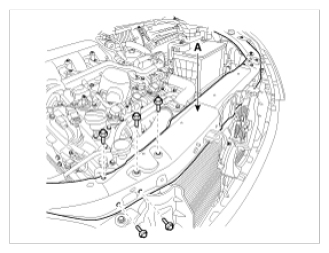

    Fig 2: Identifying Radiator Support Upper Member And Mounting Bolts
    G08810280Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the front impact sensor connector (A).

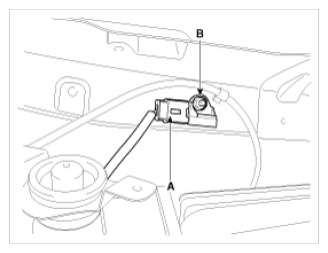

    Fig 3: Identifying Front Impact Sensor Connector And Mounting Bolt
    G08810281Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the front impact sensor mounting nut (B).
  6. Remove the front impact sensor.
