Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

  3. After loosening the mounting nuts and then remove the knee airbag (A).

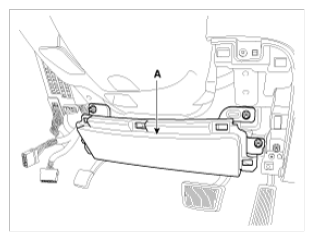

    Fig 1: Identifying Knee Airbag
    G08810320Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the knee airbag harness connector (A).

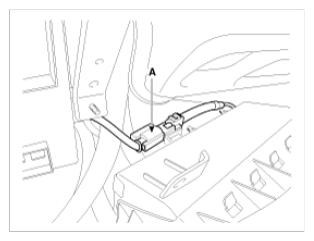

    Fig 2: Identifying Knee Airbag Harness Connector
    G08810321Courtesy of HYUNDAI MOTOR AMERICA
