Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the roof trim.

    (Refer to "ROOF TRIM ASSEMBLY ")

  3. Disconnect the curtain airbag harness connector (A).

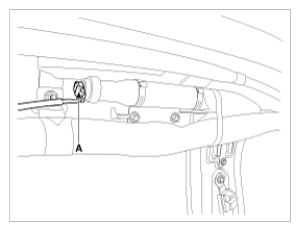

    Fig 1: Identifying Curtain Airbag Harness Connector
    G08810317Courtesy of HYUNDAI MOTOR AMERICA
  4. After loosening the mounting bolts remove the curtain airbag (A).

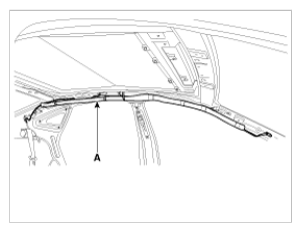

    Fig 2: Identifying Curtain Airbag
    G08810318Courtesy of HYUNDAI MOTOR AMERICA
