PCM Connector End View (CLG-B)

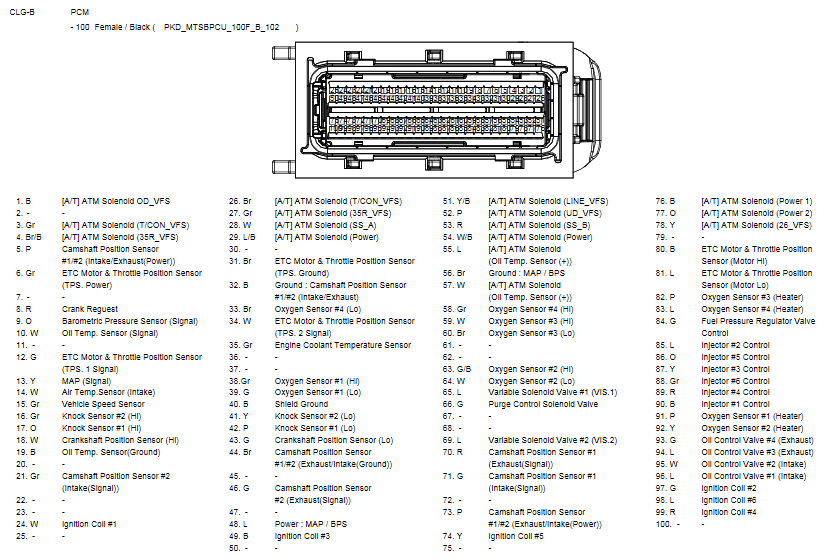

Fig 1: PCM Connector End View (CLG-B)

G10775863

Courtesy of HYUNDAI MOTOR AMERICA
