(CALIFORNIA DEALERS ONLY) CARB IN-USE MONITOR PERFORMANCE REPORT DATA COLLECTION (DC1)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 14-01-011, Date of Issue: February 01, 2014

HYUNDAI:	ALL 2014 MODELS
GROUP:	CAMPAIGN

REVISION HISTORY

IMPORTANT: *** Dealer Stock and Retail Vehicles ***
California Dealers only must perform this data collection on vehicles whenever an affected vehicle is in the shop for any maintenance or repair if the vehicle meets the criteria below.
When a vehicle arrives at the Service Department, access Hyundai Motor America's "Warranty Vehicle Information" screen via WEBDCS to identify open Campaigns.

NOTE:

Claim payment requires that data collection results must be faxed in as instructed.
Perform this Campaign first prior to completion of any other open Campaigns.

DESCRIPTION

This bulletin provides information and procedures for collecting OBD In-Use Monitor Performance Report (IUMPR) data on certain 2014MY vehicles at California dealers. This reporting is mandated by CARB (California Air Resources Board).

Affected vehicles must meet ALL of the following criteria to be eligible for DC1:

WebDCS shows this as an open Data Collection code DC1 for the vehicle.
Vehicle has over 3000 miles on its odometer.
Vehicle repair history does not show battery replacement/disconnection/reset or an ECU Update done in the last 3000 miles.
Vehicle does not have a check engine light on.

Applicable Vehicles:

2014MY vehicles with an open DC1 data collection Campaign.

WARRANTY INFORMATION

Model Year	Op Code	Operation	Op Time
2014	CCARB014	IUMPR Data Collection	0.3

NOTE: Submit Claim on Campaign Claim Entry Screen.

OVERVIEW OF THE SERVICE PROCEDURE

A. Basic Overview of the Procedure

Fill out the Vehicle Test Sheet located on the next page of this bulletin with the vehicle information.
Use GDS to read the Calibration ID of the vehicle and enter it on the Vehicle Test Sheet.
Use GDS to read and screen print the In Use Performance Report data to attach as the second page to the Vehicle Test Sheet.
Send the following 3 pages to Fax number 909-753-0373:
1. Completed Vehicle Test Sheet.
2. GDS Screen Printout of the In Use Performance Report data.
3. Single page copy of the main (front page) of the Dealer Repair Order.
Attach Items a-c listed above and the fax machine's send receipt (if available) to the Repair Order for claim record.
NOTE: Please confirm the fax transmitted successfully. It is required to be sent to fax number 909-753-0373 for you to receive claim payment, as Hyundai must submit the data to CARB.
If you cannot reach the primary fax number provided above then send your fax to the secondary fax number 909-628-7682.

B. Vehicle Test Sheet and GDS "In Use Performance Report" Data to be completed for each vehicle

As found on the next 3 pages:

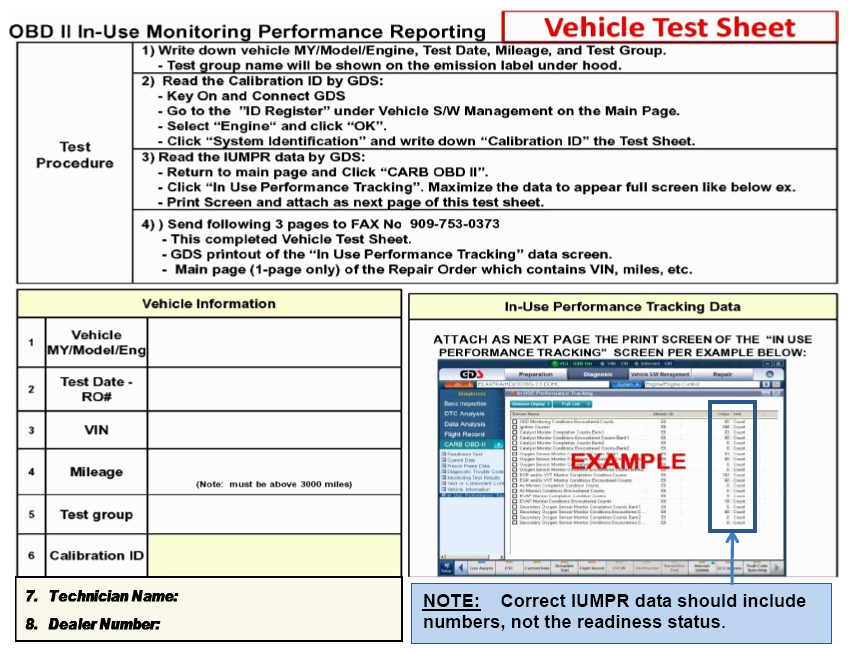

Blank Vehicle Test Sheet to be completed for each qualifying vehicle.
Examples of a completed Vehicle Test Sheet with the GDS Screen Printout of the In Use Performance Report data attached, as required per the included service procedure.

NOTE: Make multiple copies of this blank Vehicle Test Sheet page. You must complete this page and submit it by fax for each applicable vehicle along with a second page containing the "In Use Performance Reporting" data. Do not collect the Readiness Monitor Data, it is not needed.

Example of a completed Vehicle Test Sheet with printout of the GDS "In Use Performance Report" data attached as page #2:

Example of Page 1 of fax to be sent:

Example of Page 2 of Fax to be sent:

Detailed Service Procedure

Document the following information on the Vehicle Test Sheet (See page 4 of this bulletin):
- Model Year/Vehicle Name/Engine size
- Test Date (date you collected this data)
- RO Number (dealer repair order)
- VIN
- Mileage

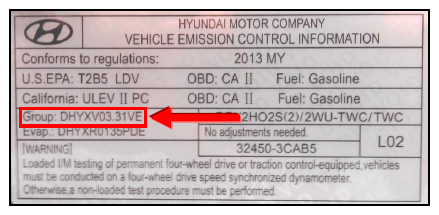

Open the engine compartment and locate the Underhood Emission Label. Write down the Group number for later entry into the form.

NOTE: Make sure that you have conducted the latest internet update of your GDS software to be able to read IUMPR values correctly.

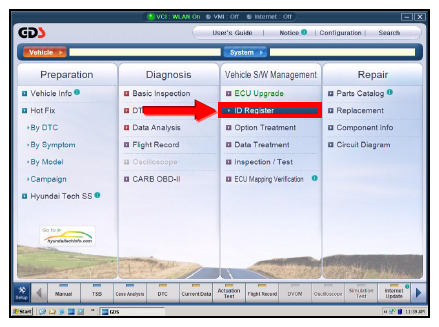

Connect the GDS to the vehicle with the ignition ON (engine does not need to be running) and select ID Register under Vehicle S/W Management tab:

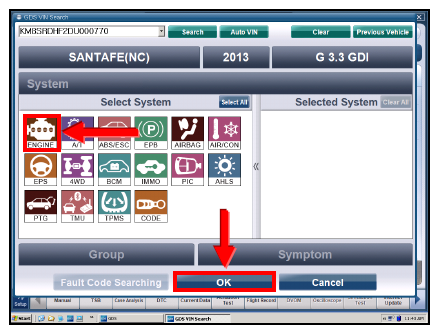

Select Engine and OK .

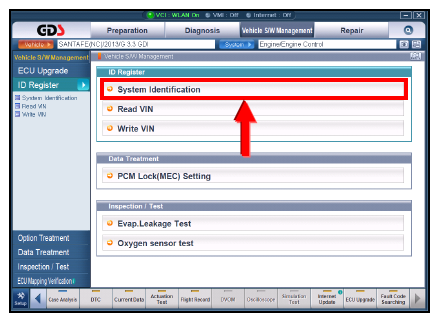

Select System Identification.

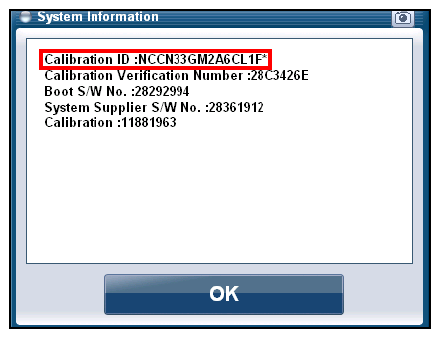

Locate the Calibration ID and enter on the Vehicle Test Sheet.
NOTE: For some models it may not display exactly as shown above. It may for example state "Sub Calibration Number" rather than Calibration ID, just be sure to use the item that includes the term "Calibration".

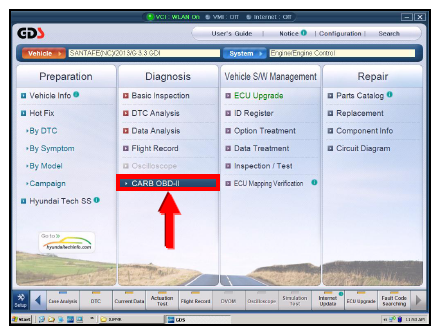

Go back to the main page of the GDS by clicking the GDS logo at the top left of the screen. Select CARB OBDII under the Diagnosis tab.

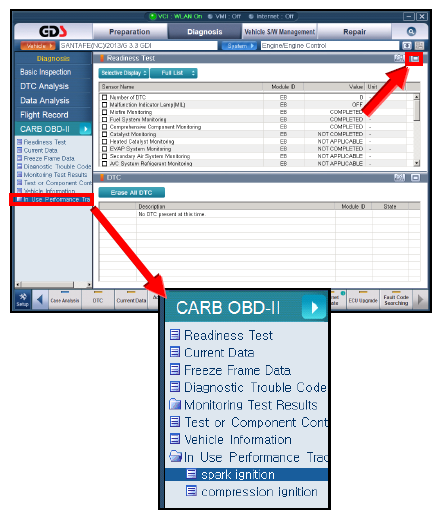

Select In Use Performance Tracking. In the sub-menu select Spark Ignition for gasoline engines.

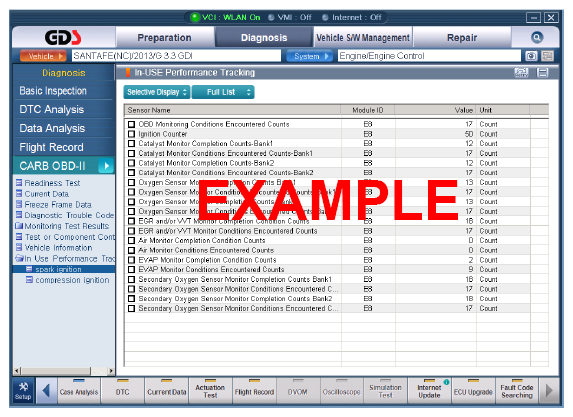

Maximize the data display on the screen as shown to verify all data is displayed.

NOTE: If all values indicate "Not Supported" or "0", check to make sure you have GDS software version 1.09 or later. If the software version is correct and the vehicle does not qualify for data collection, it may have had a recent ECM update or battery replacement.

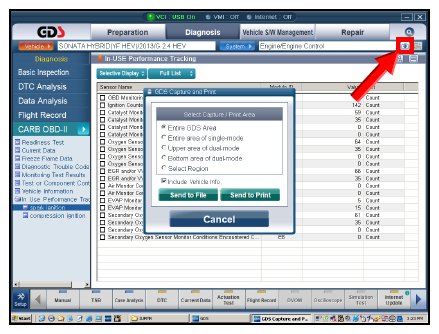

Print the GDS screen by selecting the Camera Icon in the upper right corner of the screen.
NOTE: Make sure you capture the entire screen. If only part of the list is displayed, first click the "Expand" button.

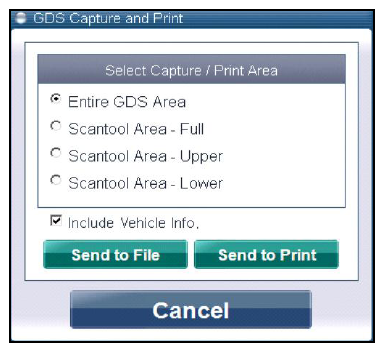

Select Entire GDS Area and click Send to Print.
Send the following 3 pages to fax number 909-753-0373:
1. Completed Vehicle Test Sheet.
2. GDS Screen Printout of the In Use Performance Report data.
3. Single page copy of the front page of the Dealer Repair Order which displays the VIN, miles, RO#, etc.
Attach the 3 pages of items 1-3 listed above and the fax machine's send receipt (if available) to the Repair Order for claim record.

NOTE: Please confirm the fax transmitted successfully. It is required to be sent to primary fax number 909-753-0373 to receive claim payment. If you can't reach the primary fax number, send to backup fax number 909-628-7682.
