Passenger Temperature Control Actuator

Disconnect the negative (-) battery terminal.

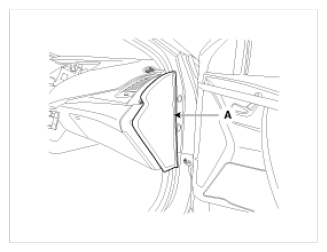

Remove the side cover (A).

Fig 1: Identifying Passenger Temperature Control Actuator Side Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the right extension cover (A).

Fig 2: Identifying Right Extension Cover
Courtesy of HYUNDAI MOTOR AMERICA

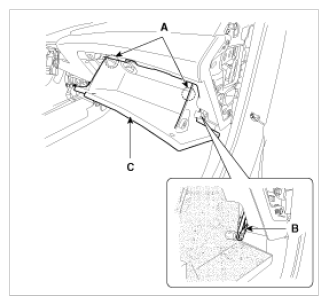

Disconnect the damper (A) from the glove box (C) and then remove the glove box lift (B).

Fig 3: Identifying Damper, Glove Box And Glove Box Lift
Courtesy of HYUNDAI MOTOR AMERICA

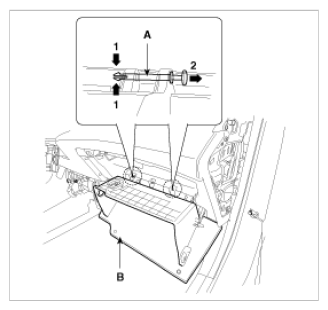

Disconnect the pin (A), then remove the glove box (B).

Fig 4: Removing Glove Box Using Pin
Courtesy of HYUNDAI MOTOR AMERICA

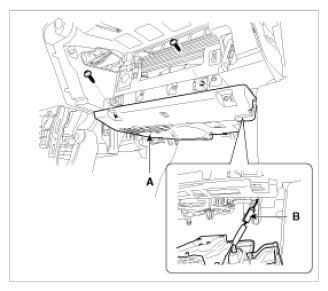

Remove the crashpad lower cover (A) and then disconnect the connector (B).

Fig 5: Identifying Crashpad Lower Cover And Connector
Courtesy of HYUNDAI MOTOR AMERICA

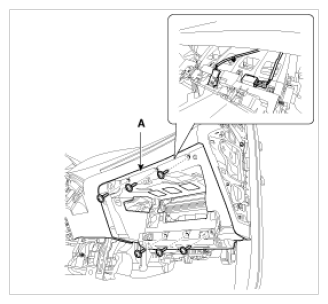

Remove the glove box housing (A).

Fig 6: Identifying Glove Box Housing
Courtesy of HYUNDAI MOTOR AMERICA

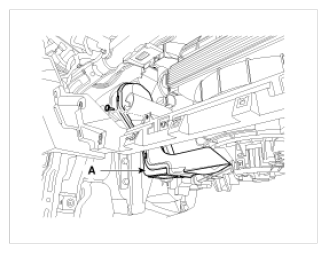

Remove the shower duct (A).

Fig 7: Identifying Shower Duct
Courtesy of HYUNDAI MOTOR AMERICA

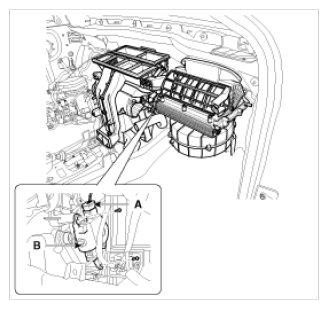

Disconnect the temperature control actuator connector (A).

Fig 8: Identifying Temperature Control Actuator And Connector
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting screw and then remove the temperature control actuator (B).
Installation is the reverse order of removal.
