Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower cover (A) and then disconnect the connector (B).

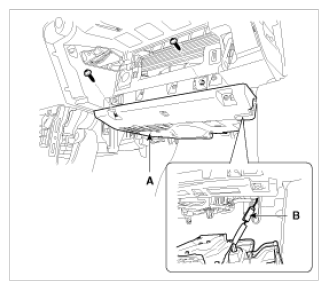

    Fig 1: Identifying Crash Pad Lower Cover And Connector
    G08814827Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the of the blower motor connector (A) and then remove the blower motor (B).

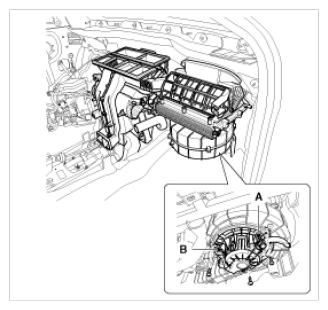

    Fig 2: Identifying Blower Motor And Connector
    G08814828Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse order of removal.
