Components and Components Location: Components

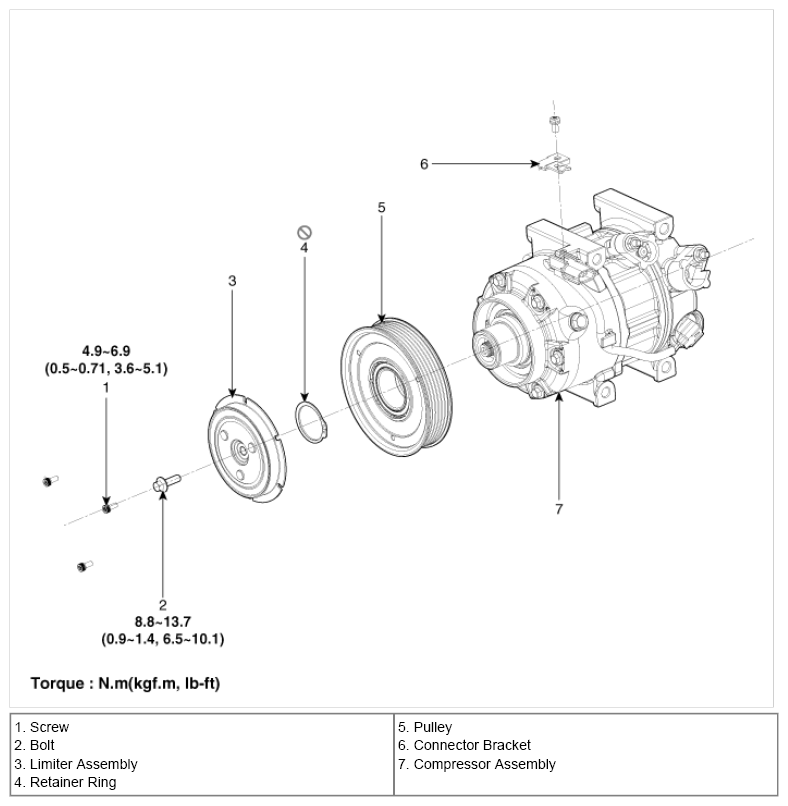

Fig 1: Compressor And Related Replacement Components With Torque Specifications

G08814732

Courtesy of HYUNDAI MOTOR AMERICA
