Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Recover the refrigerant with a recovery/charging station.
  3. Disconnect the A/C pressure transducer connector (A) and then remove the A/C pressure transducer (B).

    Tightening Torque:

    10~12N.m (1.0~1.2kgf.m, 7.4~8.8lbf.ft)

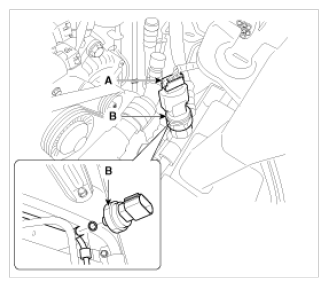

    Fig 1: Identifying A/C Pressure Transducer And Connector
    G08814764Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Take care that liquid & suction pipe are not bent.
  4. Installation is the reverse order of removal.
