Power Circuit Inspection

Check voltage
1. IG "OFF" and Disconnect BPS connector.
2. IG "ON".
3. Measure the voltage between power terminal of BPS harness connector and ground.
  Specification: Approx. 5V

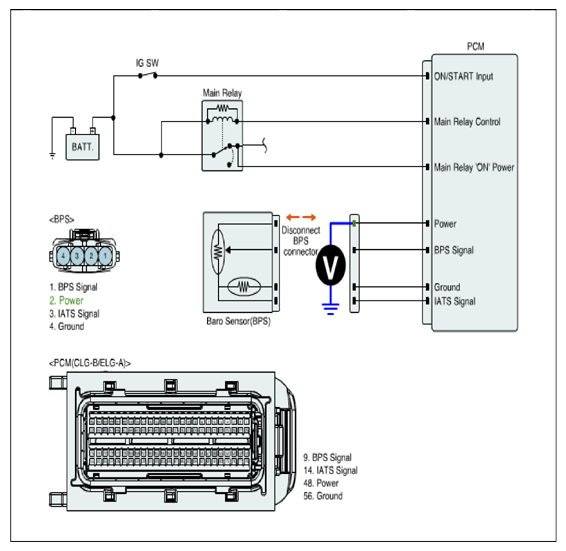

  Fig 1: Measuring Voltage Between Power Terminal Of BPS And Ground
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?
  YES
  - Go to "GROUND CIRCUIT INSPECTION " Procedure.
  NO
  - Repair open or short in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
