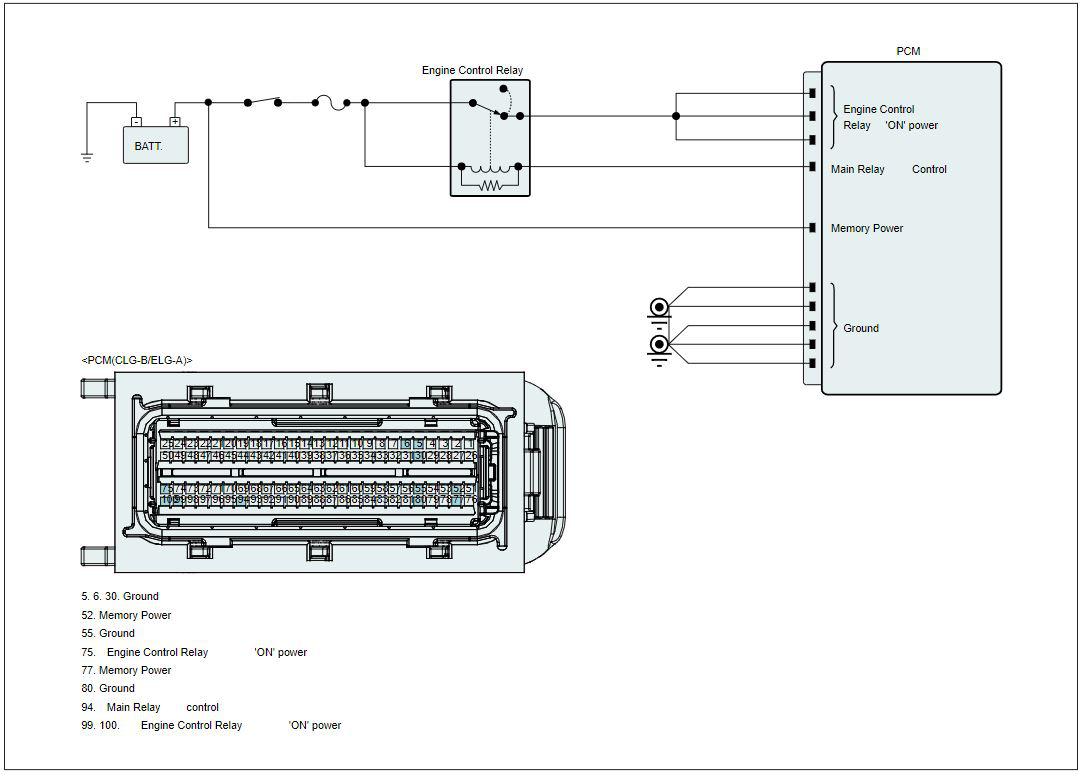

Home >> Hyundai >> 2014 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (3 Of 3) >> DTC P0685: ECM/PCM Power Relay Control Circuit/Open >> General Information >> Diagnostic Circuit Diagram
