Component Inspection

Check A/C pressure sensor
1. IG "OFF" and connect the GDS.
2. Connect the probe to A/C pressure sensor signal and select the oscilloscope in the menu.
3. Check the waveform while turning A/C switch "ON" and "OFF" with engine running "ON" and "OFF".
  Specification: refer to SIGNAL WAVEFORM & DATA

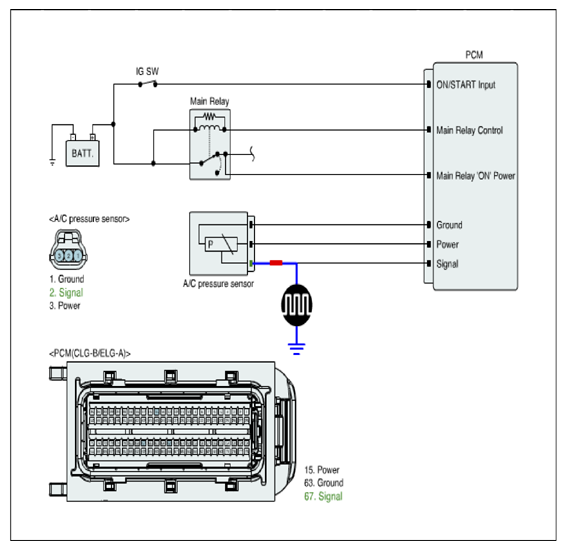

  Fig 1: Checking Waveform While Turning A/C Switch ON And OFF With Engine Running
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured waveform of A/C pressure sensor normal?
  YES
  - Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known - good A/C pressure sensor and check for proper operation. If the problem is corrected, replace A/C pressure sensor and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
